SIEMENS 6GK52042BB102AA3 by Siemens
- Part Number: 6GK52042BB102AA3
- UPC: 00662643425024
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

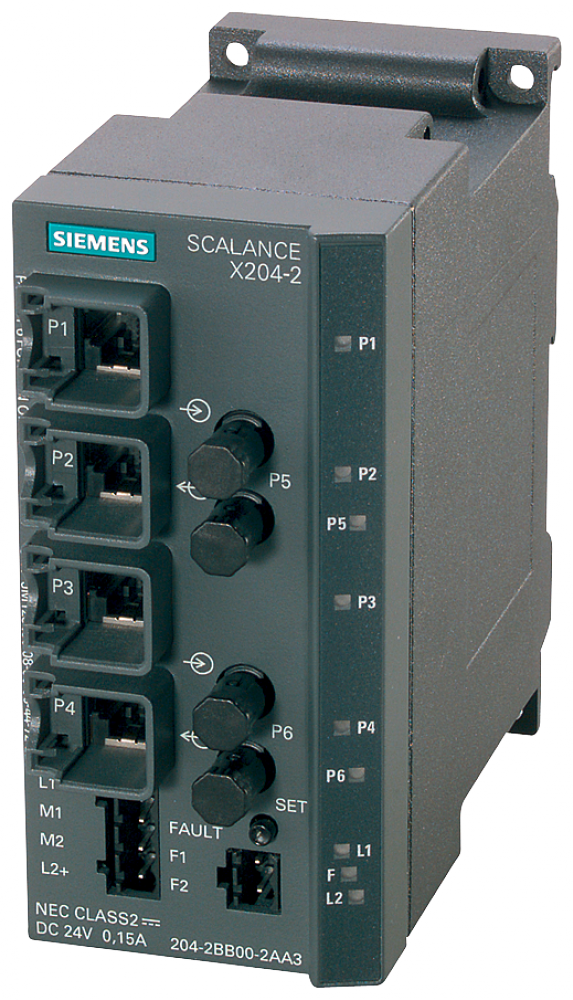

S-A 6GK52042BB102AA3 4RJ45 PORT DIN RAIL; WALL MOUNT ETHERNET SWITCH; 10/100MBIT/S
Specifications
Details
Electrical Category:
Control And Automation
Data Networking And Wireless
Electrical Subcategory:
Switches
Network Service Equipment
Brand Name:
Siemens
Brochure:
Country Of Origin:
DE
Enclosure:
IP30
Environmental Conditions:
Storage/Transport Temperature: -40 To 70 DEG C, Relative Humidity: 95 PCT
Forwarding Rate:
10/100
Height:
4.921
Interface:
4 X RJ45 Ports For Network Components And Terminal Equipment, 1 X 4-Pole Terminal Block For Power Supply, 1 X 2-Pole Terminal Block For Alarm Contact, 1 For Redundant Power Supply, 2 X BFOC Sockets (Multimode Up To 5 KM) Optical Interface For Optical Waveg
Lead Time:
63.000 DW
Length:
60
Mounting:
35 MM DIN Rail, Wall, S7-300 Rail
Operating Temperature:
-40 To 60
Protocol:
Telnet, HTTP, HTTPS, TFTP, FTP, SNMP v1, SNMP v2, SNMP v3, DCP, LLDP, SNTP, HSR/MRP Redundancy, PRP
RoHS Compliance:
Contact Manufacturer
Security:
SSH
Spec Sheet:
Special Features:
Current Consumption: 0.265 AMP; Power Loss: 6.36 WTT; Operating Current: 0.1 AMP; Function: CLI, Web-Based Management, MIB Support, TRAPs via email, Configuration With STEP 7, Port Mirroring, PROFINET IO Diagnosis, Switch-Managed, I&M0 - Device-Specific In
Standard:
UL 60950-1 Listed, CSA C22.2 No. 60950-1 Certified, CE Mark, C-Tick, KC Approval, EN 61000-6-4:2001
Type:
SCALANCE X204-2
UNSPSC:
43222612
Weight:
2.200 L
Width:
4.8819
Manufactured By:
Siemens
