SIEMENS 6EP13311SH03 by Siemens

  • Part Number: 6EP13311SH03
  • UPC: 00040892600254
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
S-A 6EP13311SH03 POWER 24 V/1.3 A REGULATED PS INPUT 100-240V AC
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Electrical Subtype:
Power Supply Units
Amperage Rating:
1.300
Application:
Power supply LOGO!Power
Brand Name:
Siemens
Country Of Origin:
AT
Efficiency:
0.85
Environmental Conditions:
-20 to 70
Frequency Rating:
47 to 63
Height:
90
Insulation:
IP20
Lead Time:
6.000 DW
Length:
3.6200 IN
52.6
Mounting:
Snaps onto DIN rail EN 60715 35x7.5/15
Phase:
1-phase AC or DC
Receptacle Configuration:
screw-type terminals
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
The miniature LOGO!Power power supply units in the same design as the LOGO!8 modules offer great performance in the smallest of spaces. The high degree of efficiency across the entire load range and the low power loss in no-load operation ensure efficien
Standard:
Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310); ATEX (EX) II 3G Ex nA IIC T3; cCS
Sub Brand:
Power supply

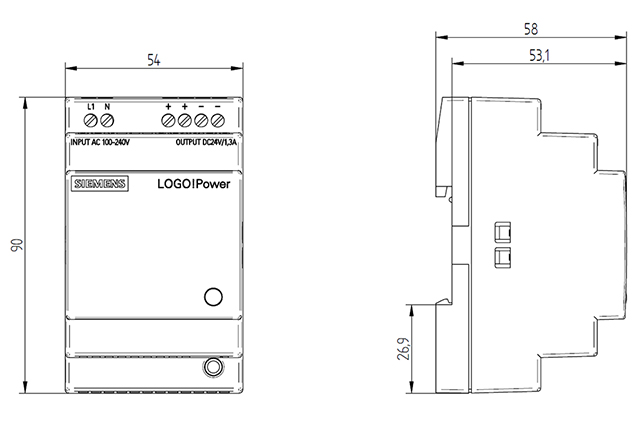

Tech Drawing Link:
Type:
Power supply LOGO!Power, single-phase 24 V DC/1.3 A
UNSPSC:
39121004
Voltage Rating:
24
Wattage:
31.2
Weight:
0.410 L
Width:
54.0
Manufactured By:
Siemens
