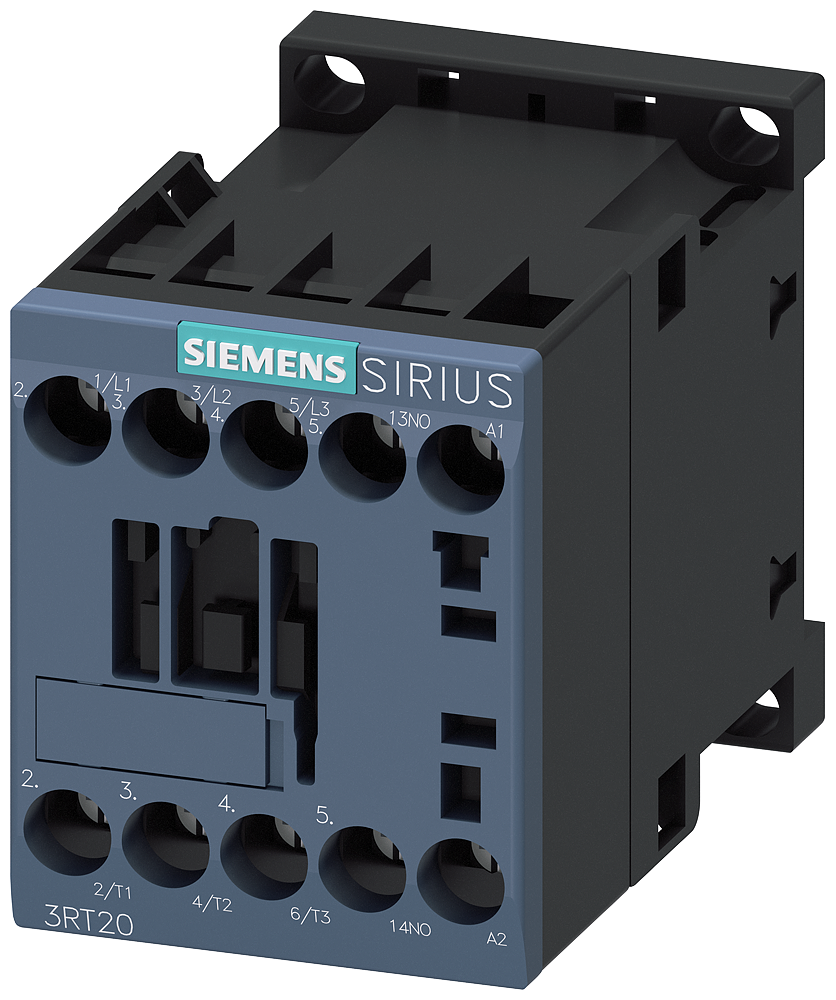

SIEMENS 3RT20151AK61 by Siemens
- Part Number: 3RT20151AK61
- UPC: 00662643908817
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (20)
Product Overview
S-A 3RT20151AK61 CONT AC-3 7A 480V 1NO 120VAC 3P SZ S00 SCREW TERM
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Brand Name:
Siemens
Coil Voltage:
110/120
Connection:
Screw type terminal
Contact Configuration:
1 NO
Contact Rating:
7 AMP At 400V
Country Of Origin:
DE
Lead Time:
11.000 DW
Operating Cycles:
30000000 of the contactor / typical, 10,000,000 of the contactor with added auxiliary switch block / typical, 5,000,000 of the contactor with added electronics-compatible auxiliary switch block / typical
Operating Temperature:
-25 To 60
Phase:
3
RoHS Compliance:
Contact Manufacturer
Size:
57.5 MM Height x 45 MM Width x 73 MM Depth
Spec Sheet:
Special Features:
Enclosure: S00, IP20; Amperage Rating: 7 AMP At 400 V; Number Of Poles: 3; Design of the fuse link: Fuse gL/gG: 10 AMP
Standard:
CCC, CSA Certified, GOST, UL Listed, EG-Konf
Stock Type:
Shelf Stock
Sub Brand:
SIRIUS
UNSPSC:
39121529
Wattage:
3
Weight:
.620 L
Manufactured By:
Siemens
