MILBANK CP3B11115A22 by Milbank
- Part Number: CP3B11115A22
- UPC: 00784572269699
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

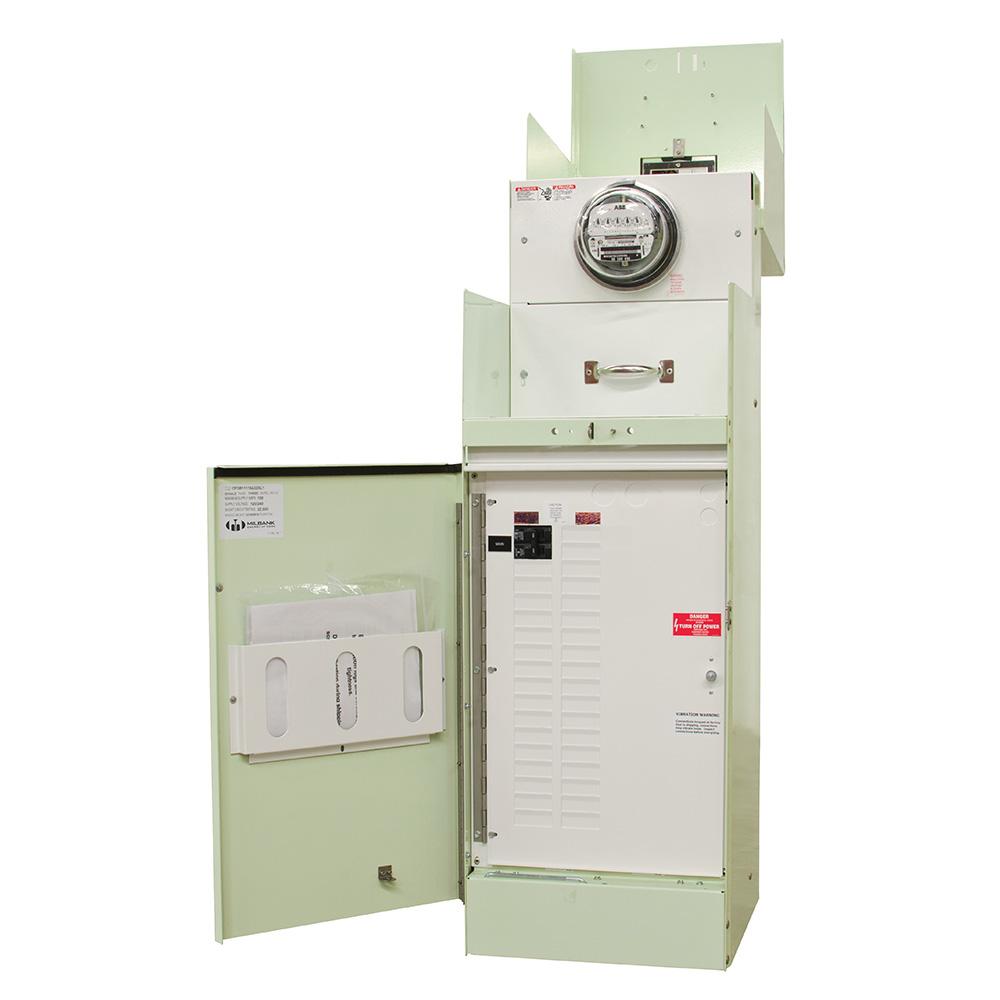

MILB CP3B11115A22 1PH 100A 240V 16L
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Distribution and Control Centers
Amperage Rating:
100 Continuous Ampere
Application:
Power Distribution
Brand Name:
Milbank
Bypass Type:
Link Bypass
Cable Entry:
Underground
Country Of Origin:
USA
Cutout Size:
One 100 Ampere Main Breaker
Enclosure:
G90 Galvanized Steel with Powder Coat Finish
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Opening:
No Hub Opening
Installation Link:
Insulation:
No Insulation
Jaw Quantity:
4 Terminal
Line Side Wire Range:
4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
Mounting:
Pad Mount
Number Of Cutouts:
1
Number of Meter Positions:
1 Position
Phase:
1 Phase
RoHS Compliance:
Contact Manufacturer
Size:
17L x 16W x 48H
Spec Sheet:
Standard:
UL Listed;Type 3R
Stock Type:
Shelf Stock
Terminal:
Single Mechanical
Type:
Ring Type Metered Commercial Pedestal
UNSPSC:
39121102
Voltage Rating:
120/240 Volts Alternating Current
Warranty Link:
Weight:
157.000 L
Manufactured By:
Milbank
