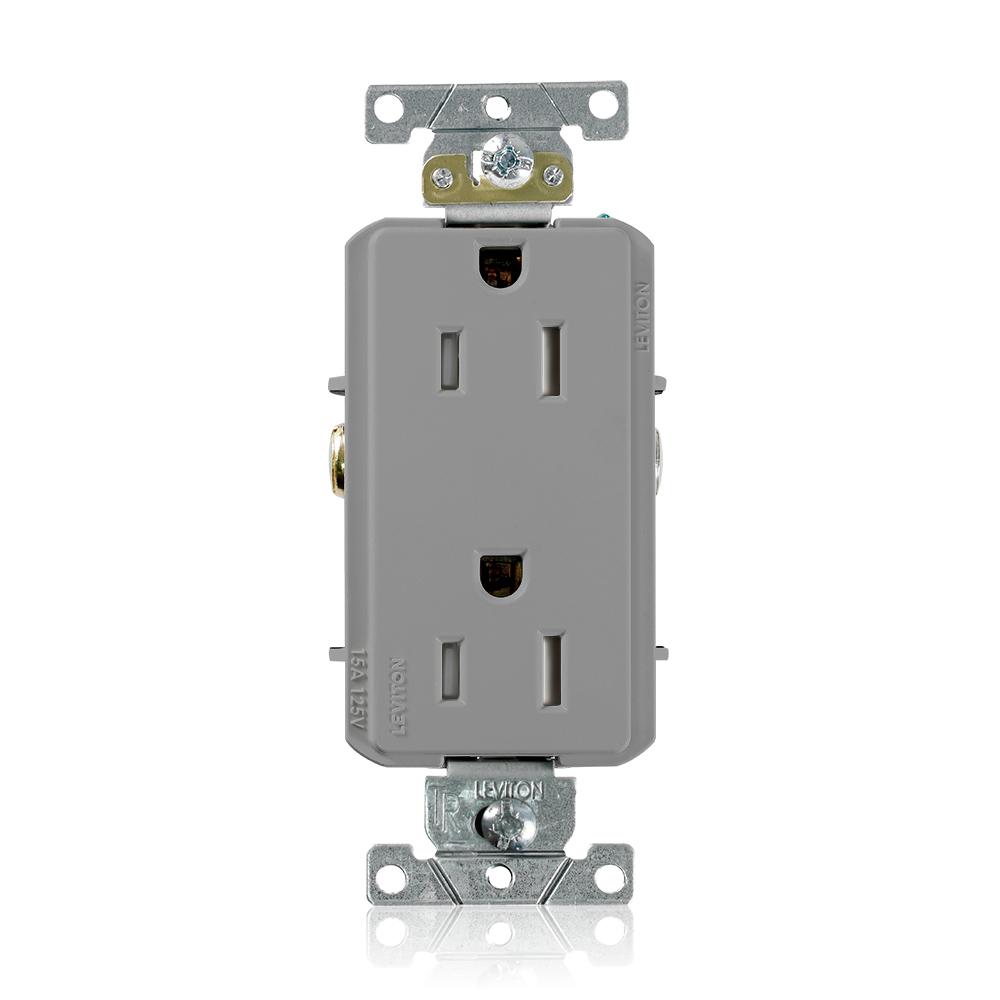

LEV TDR15-GY by Leviton
- Part Number: TDR15-GY
- UPC: 00078477392126
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
LEV TDR15-GY 515R DEC TR COMM GRD R
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Commercial
Brand Name:
LEVITON
Color:
Gray
Connection:
Back and Side Wired
Country Of Origin:
MX
Dielectric Strength:
2000 (Min.)
Environmental Conditions:
Flammability (Rated V-2 per UL94)
Material:
Nylon
Mounting:
Wall Box
MsdsURL:
https://www.ideadigitalcontent.com/files/10962/MSDS.pdf
NEMA Rating:
5-15R
Number Of Poles:
2
Number Of Wires:
3
Phase:
1
RoHS Compliance:
Contact Manufacturer
Size:
46 H x 1.52 W x 1.14 D
Spec Sheet:
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399)
Stock Type:
Shelf Stock
Sub Brand:
Decora Plus
Tech Drawing Link:
Temperature Rating:
-40 to +60
Type:
Straight Blade;Duplex Outlet
UNSPSC:
39121406
Voltage Rating:
125
Weight:
.220 L
Wire Size:
14-10
Manufactured By:
Leviton
