LEV 5266-CY by Leviton
- Part Number: 5266-CY
- UPC: 00078477795217
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

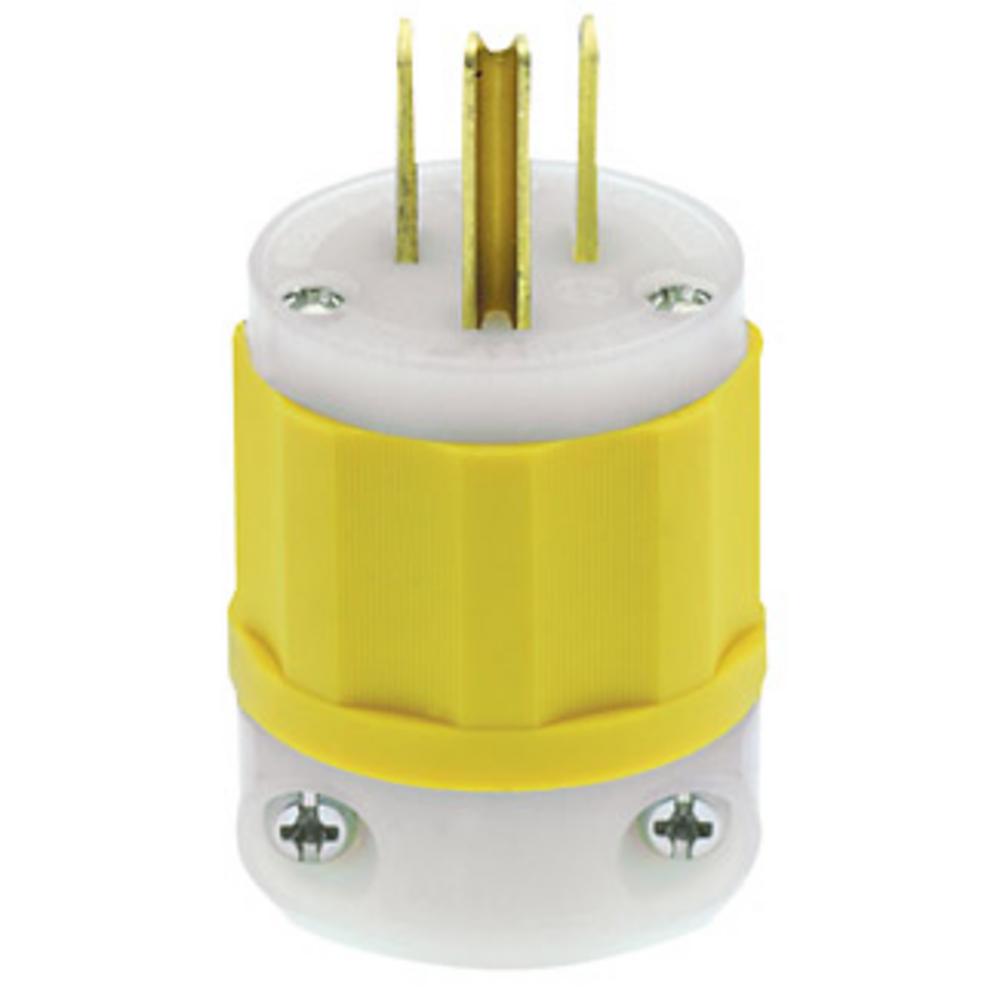

LEV 5266-CY #1CD/STR BLADE 5-15P/YL
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
15
Application:
Industrial
Brand Name:
LEVITON
Color:
Yellow-White
Country Of Origin:
MX
Environmental Conditions:
Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Material:
Super Tough Nylon (Body)
Mounting:
Cable
MsdsURL:
https://www.ideadigitalcontent.com/files/10962/MSDS.pdf
NEMA Rating:
5-15P
Number Of Poles:
2
Number Of Wires:
3
RoHS Compliance:
Contact Manufacturer
Size:
1.53 Dia x 1.98 H
Spec Sheet:
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399);UL Fed Spec WC-596 (File E13393);UL Fed Spec WC-598
Stock Type:
Shelf Stock
Sub Brand:
Black & White
Tech Drawing Link:
Type:
Straight Blade Plug
UNSPSC:
39121402
Voltage Rating:
125
Weight:
.170 L
Wire Size:
18-10 AWG (Terminal Accommodation);.250-.685 IN (Cord Grip Range)
Manufactured By:
Leviton
