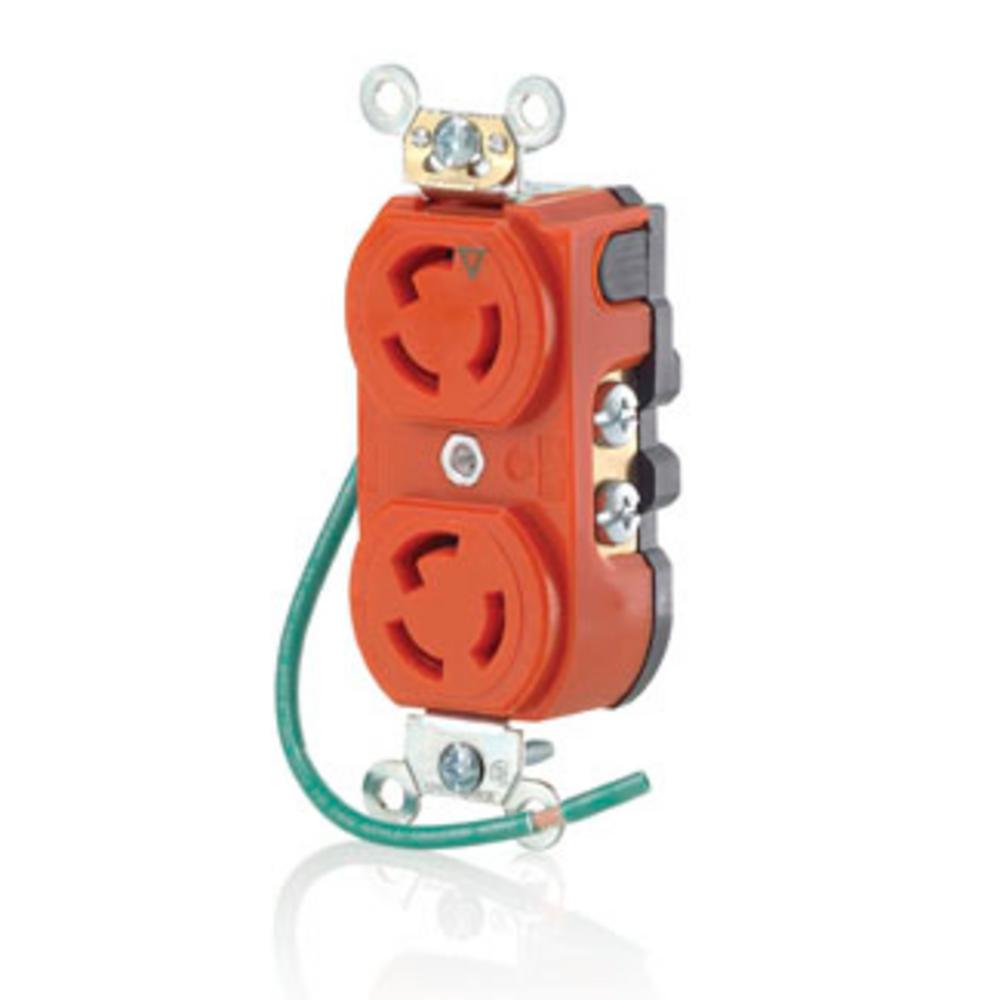

LEV 4700-IG by Leviton
- Part Number: 4700-IG
- UPC: 00078477778029
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
LEV 4700-IG #1CD/DUPL LCK FL REC/IG
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Commercial
Brand Name:
LEVITON
Color:
Orange
Connection:
Back Wired;Side Wired
Country Of Origin:
MX
Dielectric Strength:
2000 (Min.)
Environmental Conditions:
Flammability (Rated V-2 per UL94)
Material:
Nylon
Mounting:
Box
MsdsURL:
https://www.ideadigitalcontent.com/files/10962/MSDS.pdf
NEMA Rating:
L5-15R
Number Of Poles:
2
Number Of Wires:
3
RoHS Compliance:
Contact Manufacturer
Size:
46 H x 1.44 W x 1.20 D
Spec Sheet:
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Stock Type:
Shelf Stock
Tech Drawing Link:
Temperature Rating:
-40 to +60
Type:
Duplex Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Weight:
.260 L
Wire Size:
18-10
Manufactured By:
Leviton
