Product Overview

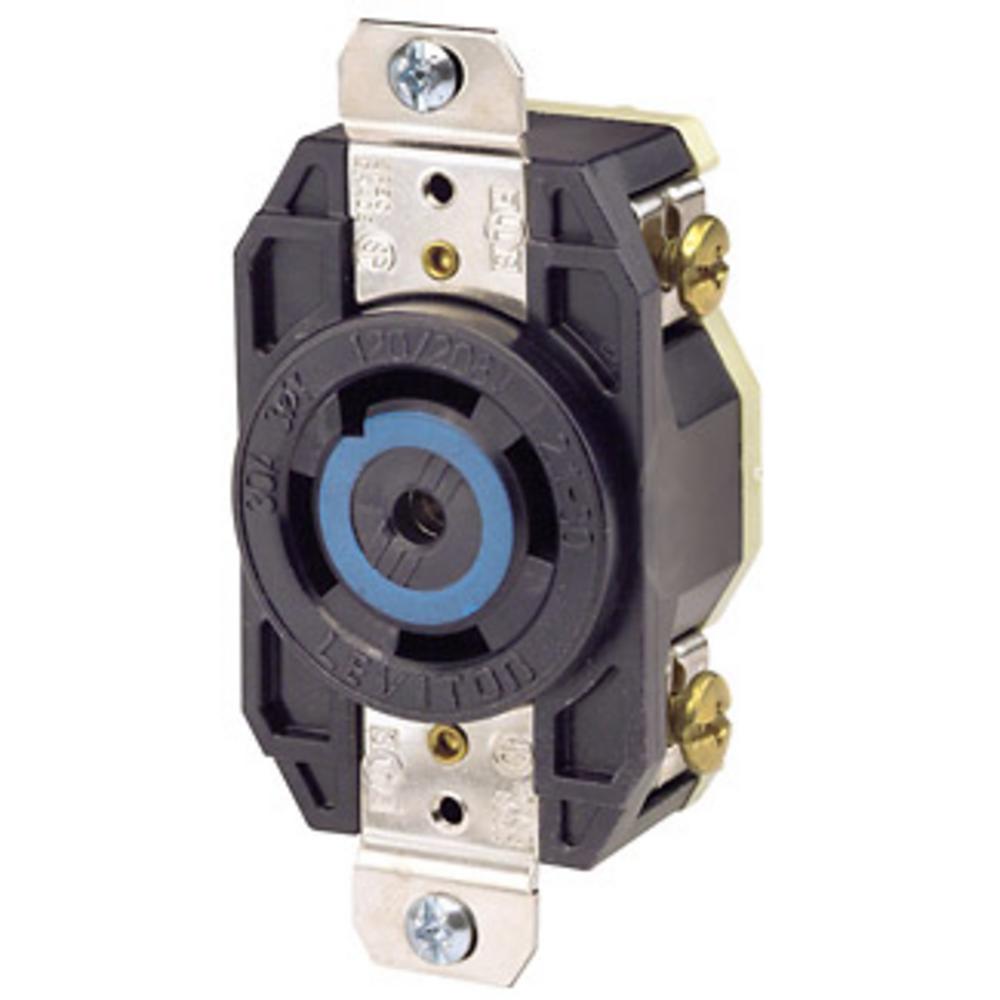

LEV 2810 30AMP 120/208V 3PY L21-30R 4P 5W FLUSH MTG LOCKING RECPT
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Commercial
Brand Name:
LEVITON
Color:
Black
Connection:
Back Wired;Side Wired
Country Of Origin:
MX
Dielectric Strength:
2000 (Min.)
Environmental Conditions:
Flammability (Rated V-2, Rated V-0 per UL94)
Material:
PBT
Mounting:
Box
MsdsURL:
https://www.ideadigitalcontent.com/files/10962/MSDS.pdf
NEMA Rating:
L21-30R
Number Of Poles:
4
Number Of Wires:
5
Phase:
3
RoHS Compliance:
Contact Manufacturer
Size:
3.62 H x 1.70 W x 1.43 D
Spec Sheet:
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498
Stock Type:
Shelf Stock
Sub Brand:
V-0-Max
Tech Drawing Link:
Temperature Rating:
-40 to +60
Type:
Flush Mount Locking Receptacle
UNSPSC:
39121406
Voltage Rating:
120;208
Weight:
.340 L
Wire Size:
14-8
Manufactured By:
Leviton
