LEV 2416 by Leviton
- Part Number: 2416
- UPC: 00078477806326
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

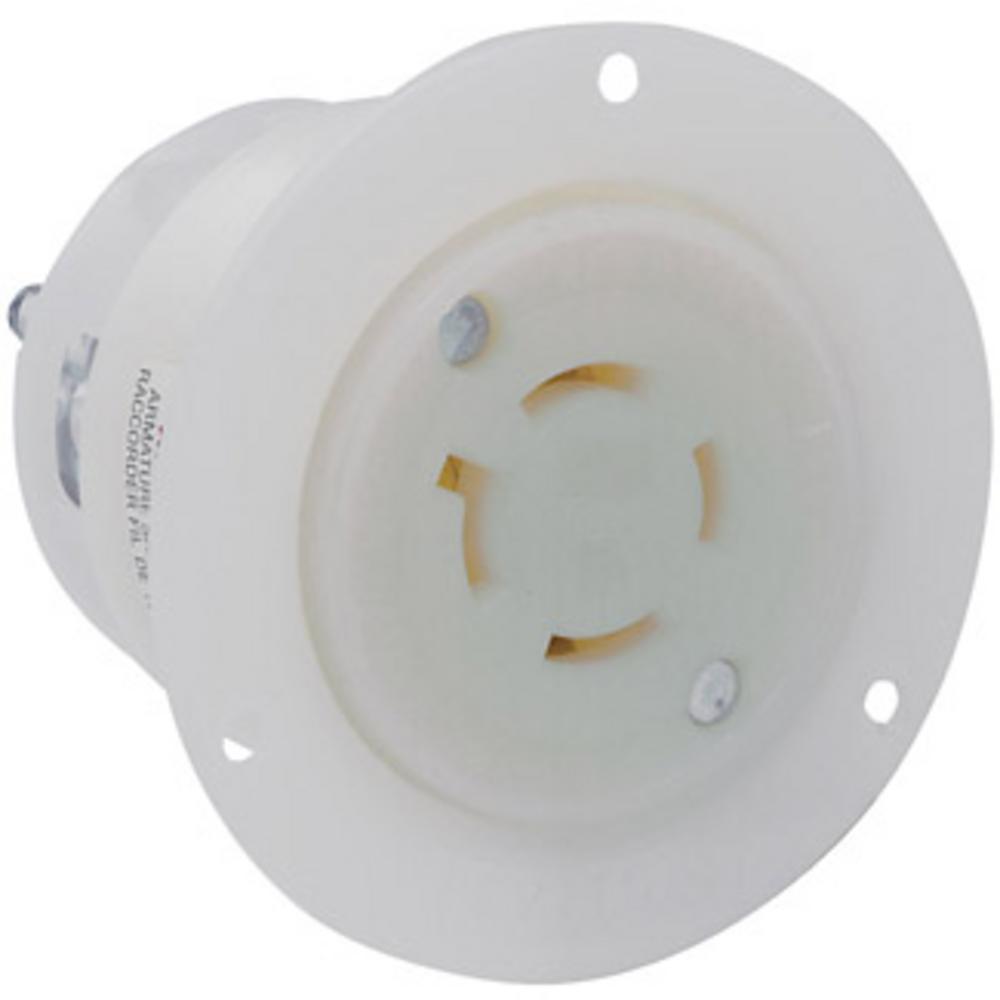

LEV 2416 L14-20R FLANGED OUTLET WHI
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Commercial
Brand Name:
LEVITON
Color:
White
Connection:
Back Wired
Country Of Origin:
MX
Dielectric Strength:
2000 (Min.)
Environmental Conditions:
Flammability (Rated V-2 per UL94)
Material:
Nylon
Mounting:
Flange
MsdsURL:
https://www.ideadigitalcontent.com/files/10962/MSDS.pdf
NEMA Rating:
L14-20R
Number Of Poles:
3
Number Of Wires:
4
RoHS Compliance:
Contact Manufacturer
Size:
2.50 Dia x 1.78 H
Spec Sheet:
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399)
Stock Type:
Shelf Stock
Sub Brand:
V-0-Max
Tech Drawing Link:
Temperature Rating:
-40 to +60
Type:
Locking Flanged Outlet
UNSPSC:
39121406
Voltage Rating:
125;250
Weight:
.440 L
Wire Size:
16-8
Manufactured By:
Leviton
