KILLARK VP10487 by Killark, a Hubbell affiliate
- Part Number: VP10487
- UPC: 00783936834764
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

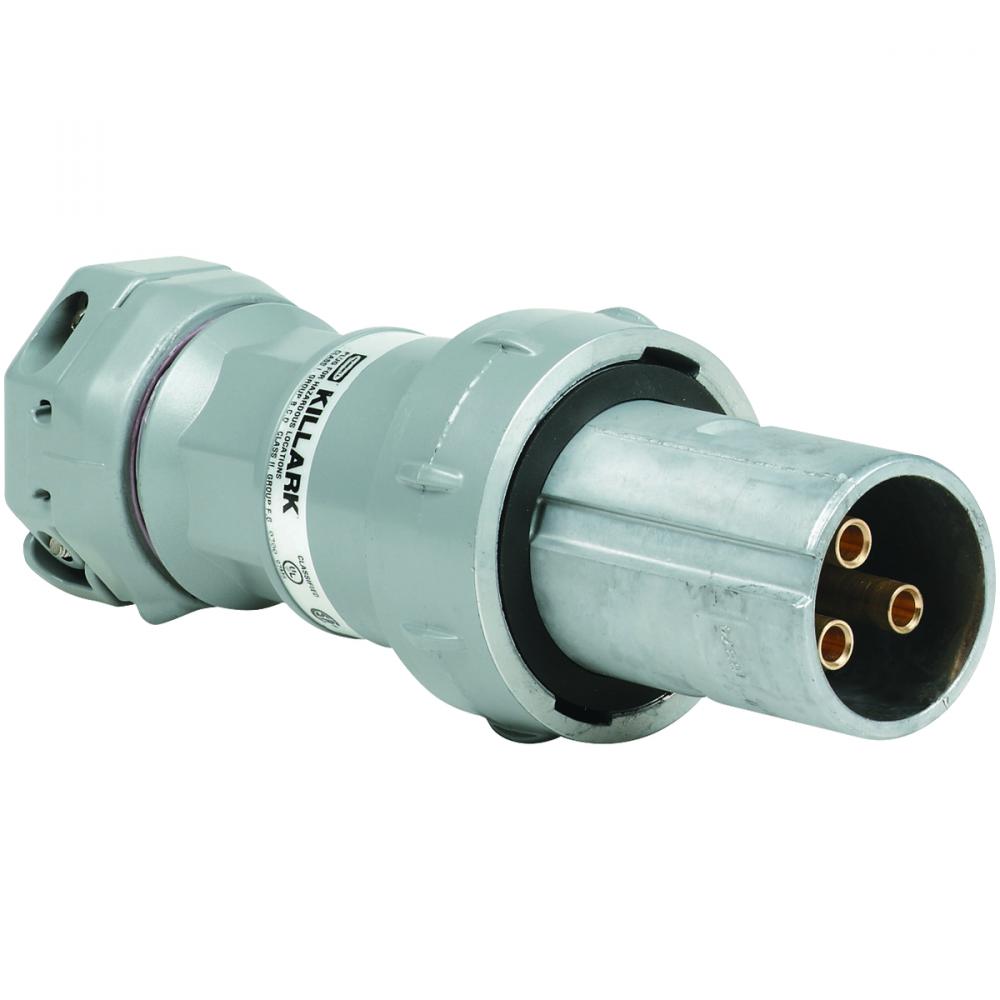

KLRK VP10487 100A 3W4P PLUG ASSY.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
100
Application:
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Por
Brand Name:
KILLARK
Color:
Gray
Cord Type:
G, W, S, SO, STO, or similar
Country Of Origin:
US
Environmental Conditions:
Wet and hazardous locations
Installation Link:
Material:
Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
NEMA Rating:
NEMA 3, 4, 4X, 7BCD, 9FG
Number Of Poles:
4
Number Of Wires:
3
Phase:
3 Ph
Size:
10.87 in x 4.25 in x 4.25 in
Spec Sheet:
Special Features:
VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and s
Standard:
UL, CSA
Sub Brand:
VERSAMATE
Type:
Pin & Sleeve
UNSPSC:
39121402
Voltage Rating:
600;250
Warranty Link:
Weight:
4.970 L
Wire Size:
Regular stranding: #4-#2; extra flex: #4-#2
Manufactured By:
Killark, a Hubbell affiliate
