KILLARK GOML1R3 by Killark, a Hubbell affiliate
- Part Number: GOML1R3
- UPC: 00783936225029
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

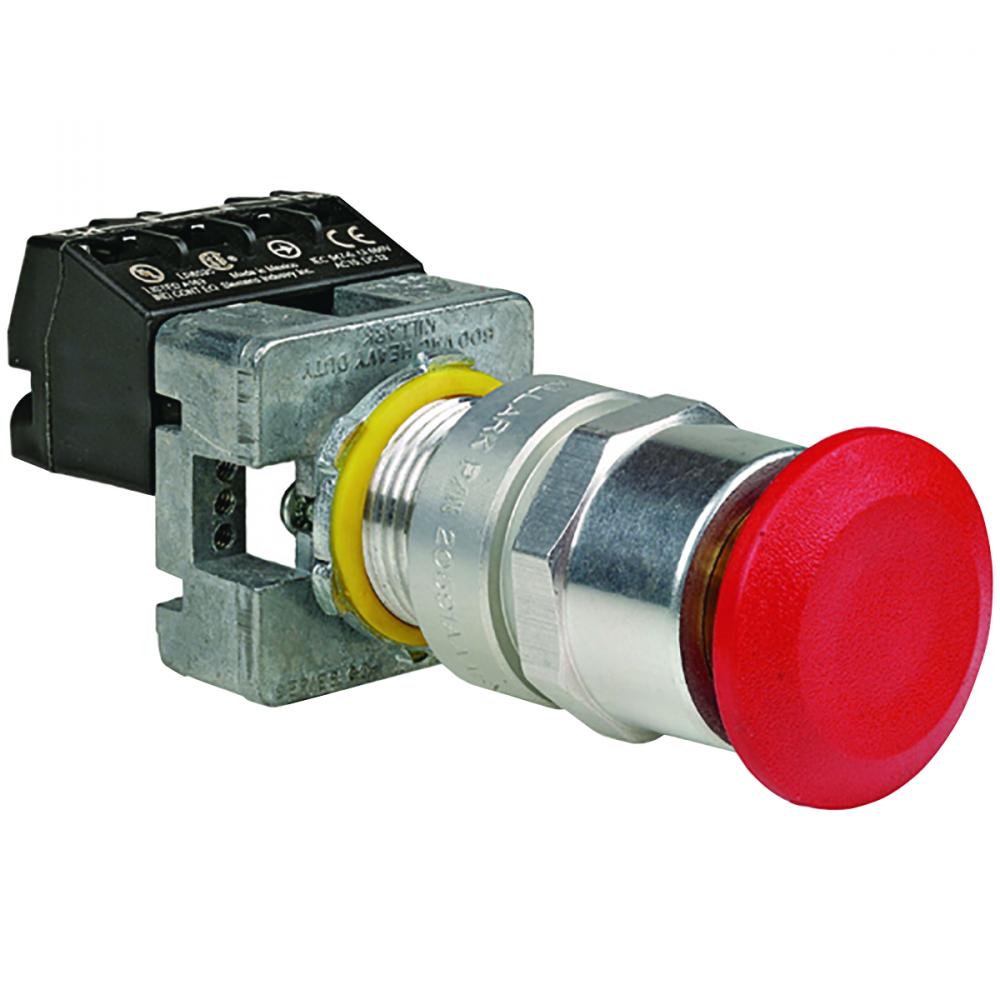

KLRK GOML1R3 RED MAINTAINED EXTENDED PUSH-PULL NO/NC
Specifications
Details
Category:
Lighting Controls
Electrical Category:
Conduit and Fittings
Electrical Subcategory:
Conduit Fittings
Action:
Maintained
Actuator:
Maintained Pushbutton
Amperage Rating:
10
Application:
G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
Brand Name:
KILLARK
Contact Configuration:
1-NO/1-NC
Contact Rating:
60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VD
Country Of Origin:
US
Environmental Conditions:
Hazardous locations
Lead Time:
10.000 WK
Number Of Poles:
1
Size:
6.75 in x 2.25 in x 2 in
Spec Sheet:
Special Features:
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 &
Standard:
UL, CSA
Type:
Push Button
UNSPSC:
39122216
Voltage Rating:
600 VAC maximum
Warranty Link:
Weight:
.930 L
Manufactured By:
Killark, a Hubbell affiliate
