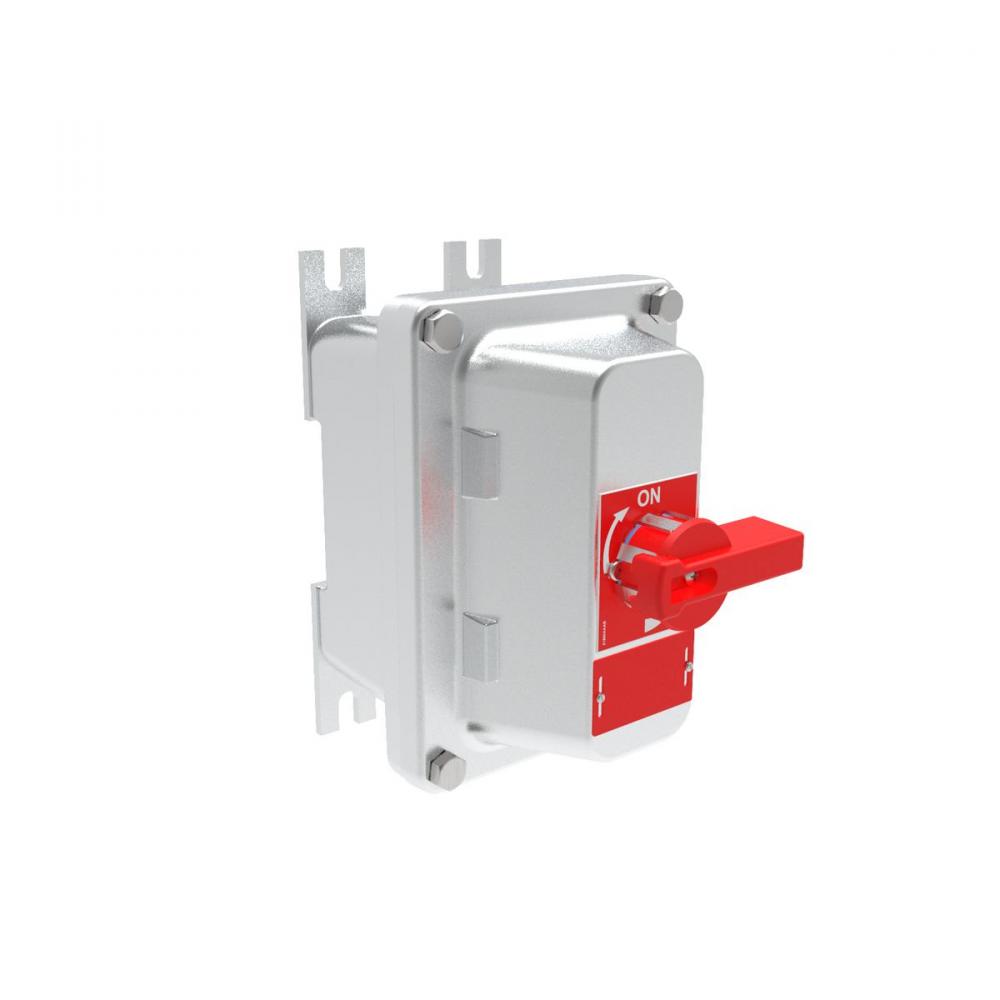

HUB-LT B7NFD13A by Killark, a Hubbell affiliate
- Part Number: B7NFD13A
- UPC: 00783936009759
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
KLRK B7NFD13A NONFUSED DISC 30A 3P
Specifications
Details
Electrical Category:
Control And Automation
Conduit and Fittings
Electrical Subcategory:
Switches
Conduit Fittings
Action:
3P
Actuator:
Rotary Handle
Amperage Rating:
30
Application:
The PRISM B7 Series of non-fused disconnect switches are used: in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers, and flyings;outdoors or indoors in damp, wet, and dirty locations;in areas where freque
Brand Name:
KILLARK
Brochure:
Country Of Origin:
US
Enclosure:
Bolted
Environmental Conditions:
Wet and hazardous locations
Frequency Rating:
60
Installation Link:
Lead Time:
15.000 WK
Line Drawing Link:
Material:
Aluminum, Copper Free (less than 4/10 of 1%)
Mounting:
Wall
NEMA Rating:
3, 4, 4X, 7(B, C, D), 9(E, F, G)
Number Of Poles:
3
Size:
8-1/6" H x 5-3/4" W x 6-5/16" D
Spec Sheet:
Special Features:
Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
Standard:
cCSAus
Sub Brand:
PRISM
Tech Drawing Link:
Type:
Non-Fused Disconnect
UNSPSC:
39122205
Voltage Rating:
600 VAC maximum, 230 VDC
Warranty Link:
Weight:
12.000 L
Manufactured By:
Killark, a Hubbell affiliate
