NONSTOCK by Intermatic
- Part Number: FD30MAC
- UPC: 00782750729232
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

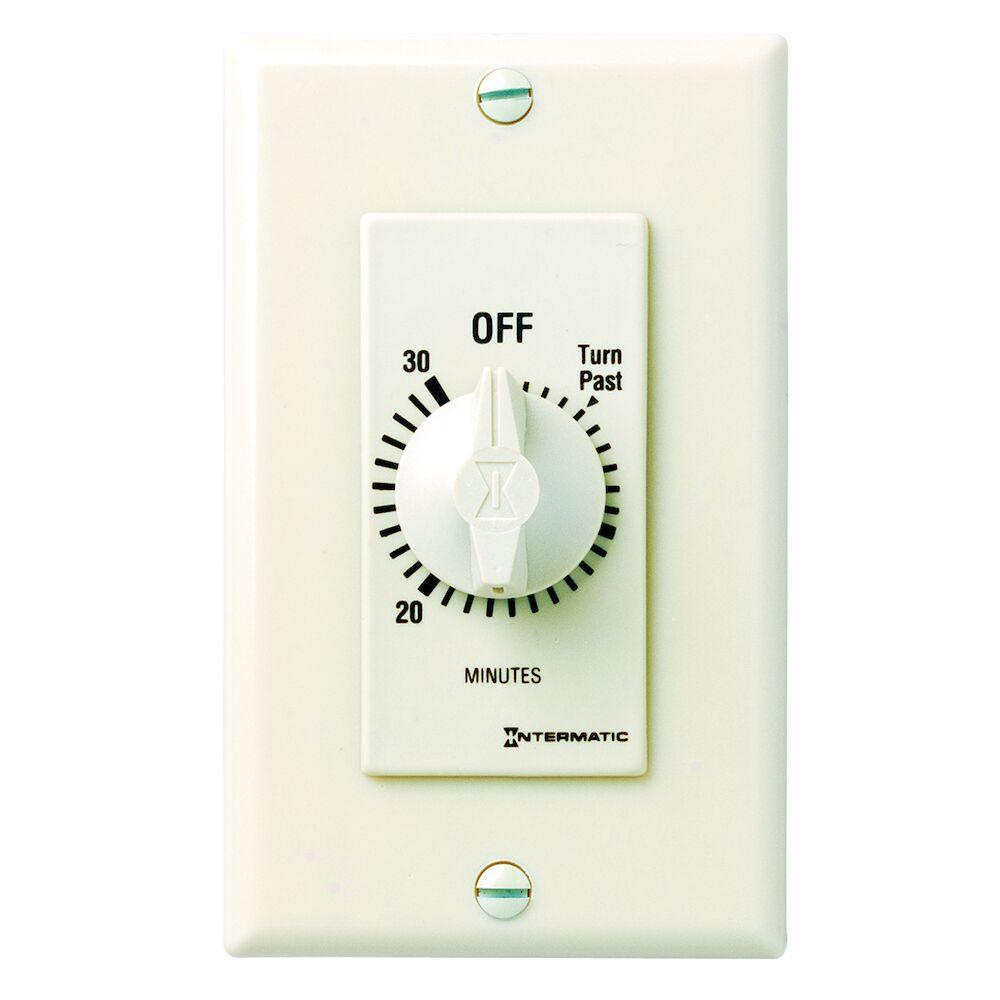

FD30MAC TIMER
Specifications
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Electrical Category:
Tools
Electrical Subcategory:
Adapters Timers Counters And Hour Meters
Electrical Subtype:
Spring Wound Timers
Action:
1 x SPST
Amperage Rating:
15
Application:
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Brand Name:
Intermatic
Connection:
Teeter Type
Contact Configuration:
1 NO
Contact Rating:
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Country Of Origin:
TN
Installation Link:
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-40 to +104 DEG F, -40 to +40 DEG C
RoHS Compliance:
No
Size:
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Spec Sheet:
Special Features:
Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in Single o
Standard:
cCSAus Certified, UL Listed, UL Recognized, HVACR
Stock Type:
Shelf Stock
Timer Duration:
30
Timing Range:
30
Type:
Decorator Spring Wound Auto-Off
UNSPSC:
39122208
Voltage Rating:
125 - 277
Wall Plate Color:
Almond
Weight:
.330 L
Manufactured By:
Intermatic
