INT-MAT by Intermatic
- Part Number: ET1725C
- UPC: 00782751098658
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

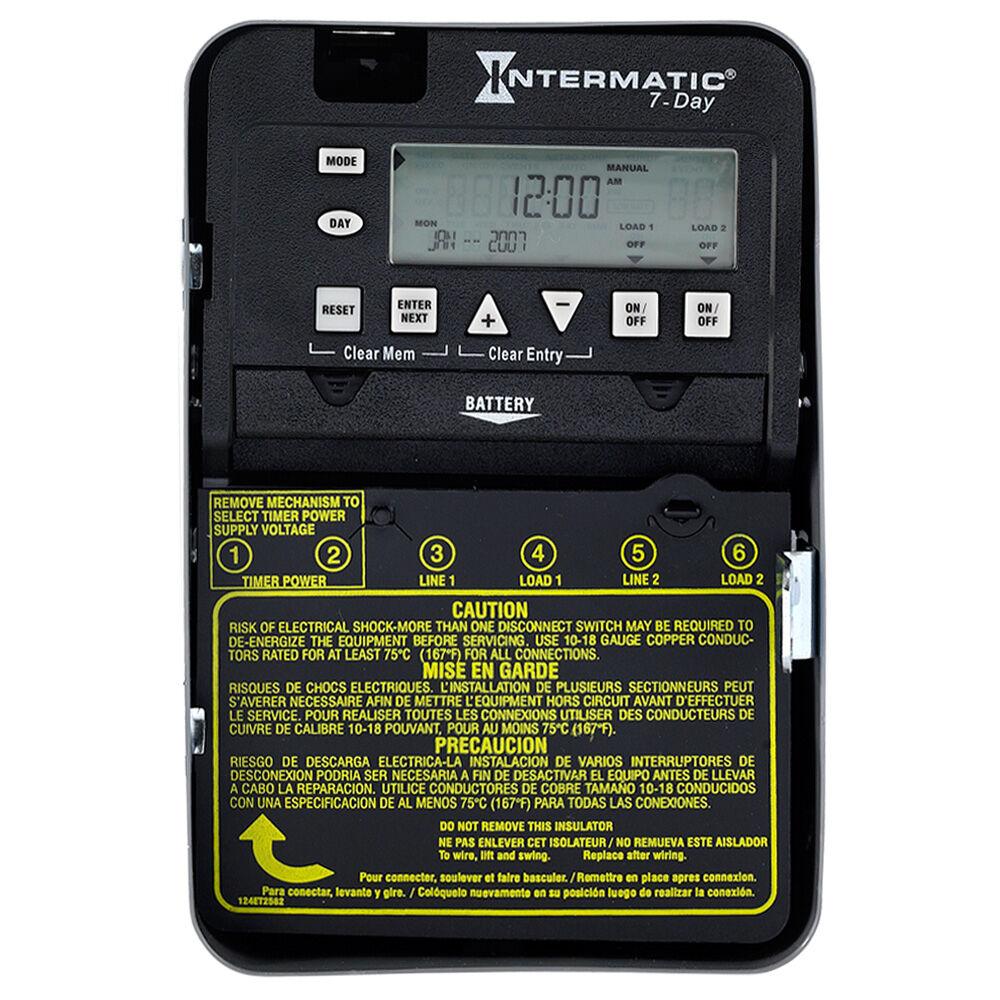

INTERMATIC ET1725C 24HR/7-DAY ELEC TIME CLOCK (REPLACES ET173C)
Specifications
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Electrical Category:
Tools
Electrical Subcategory:
Adapters Timers Counters And Hour Meters
Electrical Subtype:
Spring Wound Timers
Action:
2 x SPST
Amperage Rating:
30
Application:
Indoor, HVACR, Industrial
Brand Name:
Intermatic
Brochure:
Connection:
Teeter Type
Contact Configuration:
1 NO
Contact Rating:
30 AMP @ 120/240 VAC (Resistive NO), 20 AMP @ 28 VDC (Resistive NO), 30 AMP @ 120/240 VAC (Inductive NO), 5 AMP @ 120/240 VAC (Tungsten NO), 20 AMP @ 120 - 277 VAC (Ballast NO)
Country Of Origin:
CN
Enclosure:
NEMA 1 Steel
Installation Link:
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-40 to +155 DEG F, -40 to +68 DEG C
RoHS Compliance:
No
Spec Sheet:
Special Features:
Features: 7-Day, Multi-Voltage, Battery Backup, Pulse Output, 1 Year Warranty, Automatic Adjustment for Daylight Saving Time
Standard:
cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Timer Duration:
7
Timing Range:
1 MIN - 6 DAYS 23 HR 59 MIN
Type:
Electronic
UNSPSC:
39122208
Voltage Rating:
120 - 277
Weight:
2.920 L
Manufactured By:
Intermatic
