INT-MAT T7801B by Intermatic
- Part Number: T7801B
- UPC: 00782754630114
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

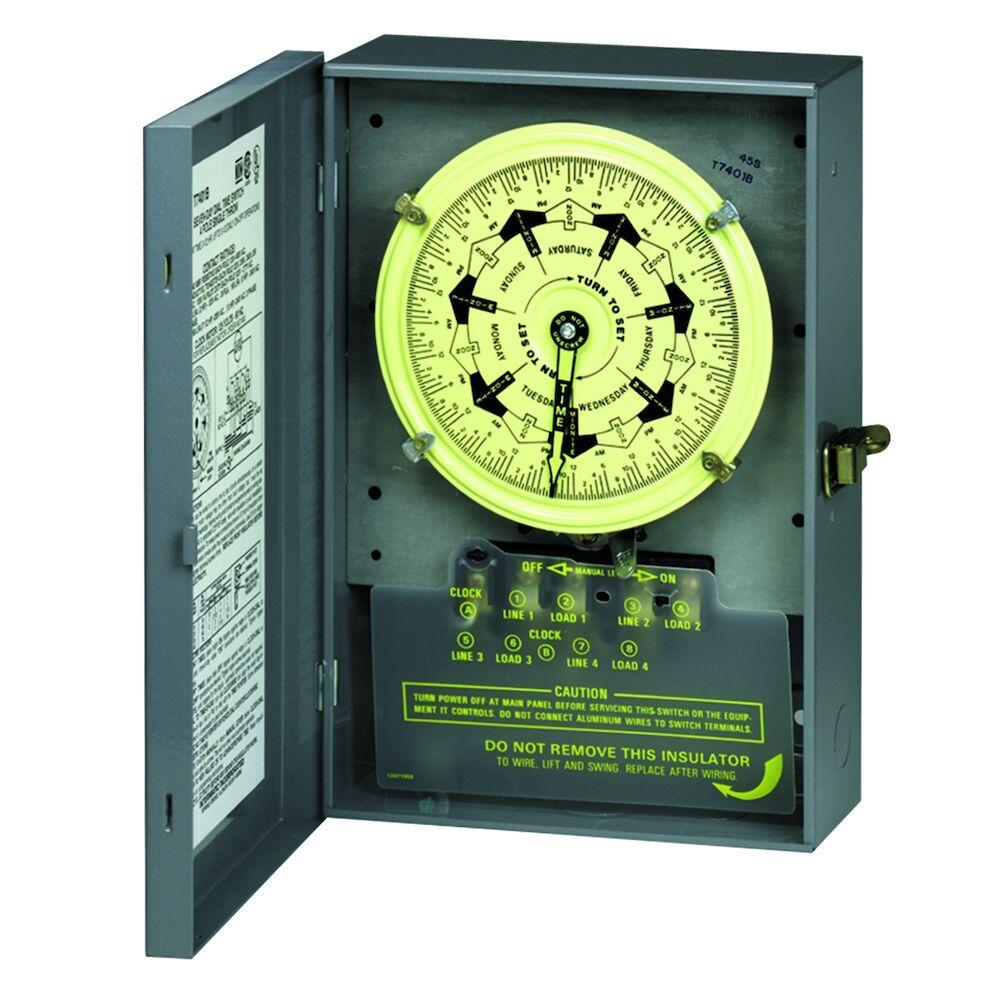

INT-MAT T7801B 7-DAY MECHANICAL TIME SWITCH 120 VAC, 60HZ NEMA 1 125 V DPDT
Specifications
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Electrical Category:
Tools
Electrical Subcategory:
Adapters Timers Counters And Hour Meters
Electrical Subtype:
Spring Wound Timers
Action:
DPDT
Application:
Commercial, Industrial, Residential, Indoor, HVACR
Brand Name:
Intermatic
Connection:
Screw Terminal
Contact Configuration:
NO/NC
Contact Rating:
40 AMP @ 120 - 480 VAC
Country Of Origin:
MX
Enclosure:
NEMA 1 Steel
Installation Link:
Mounting:
Wall Mount
Number Of Poles:
2
Operating Temperature:
-40 to +130 DEG F, -40 to +54 DEG C
RoHS Compliance:
No
Size:
12-1/2 HEIGHT X 8-1/4 WIDTH X 4 DEPTH IN, 31.7 HEIGHT X 21.0 WIDTH X 10.2 CM
Spec Sheet:
Special Features:
Features: Separate clock motor terminals for switching loads not on-line voltage, Carryover automatically rewinds when power resumes, One hour of rewinding time for every two hours of power outage, 1 Year Warranty
Standard:
cCSAus Certified, HVACR
Stock Type:
Shelf Stock
Timer Duration:
3-1/2 HR/7 DAYS
Timing Range:
3-1/2 HR - 7 DAYS
Type:
Electromechanical
UNSPSC:
39122208
Voltage Rating:
125
Wattage:
3
Weight:
8.140 L
Manufactured By:
Intermatic
