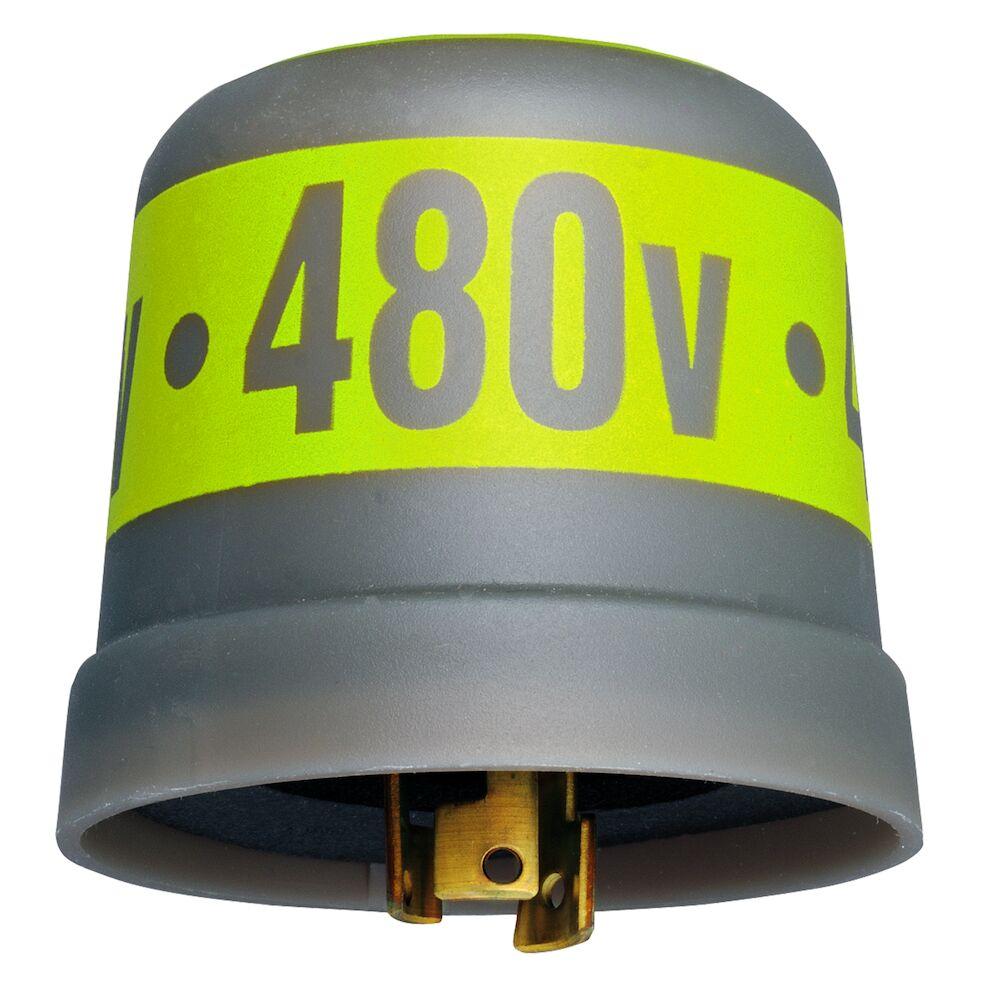

INT-MAT LC4535 by Intermatic
- Part Number: LC4535
- UPC: 00782750026782
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
INT-MAT LC4535 480 V 50/60 HZ. 1000
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photocontrols
Application:
Dusk to Dawn Lighting Control
Brand Name:
Intermatic
Connection:
Lock Type
Country Of Origin:
MX
Frequency Rating:
50/60
Installation Link:
Mounting:
Twistlock Mount
Operating Temperature:
-20 to +104 DEG F, -29 to +40 DEG C
Power Consumption:
1
RoHS Compliance:
No
Sensitivity:
0.5 FC (Minimum) ON, 15 FC (Minimum) OFF
Sensor:
Thermal Type Photo Control (Cadmium Sulfide)
Size:
3 DIAMETER X 2-3/4 HEIGHT IN, 7.6 DIAMETER X 7 HEIGHT CM
Source:
Automatic Switching
Spec Sheet:
Special Features:
Features: Cadmium Sulfide Photocell, Polypropylene Housing with UV Protection
Standard:
UL Recognized, CSA, Title CA 20 Listed, California Title 24 Compliant
Stock Type:
Shelf Stock
Supply Voltage:
480
Type:
TwistLock Photocell
UNSPSC:
39121524
Weight:
.250 L
Manufactured By:
Intermatic
