INT-MAT ET90215CR by Intermatic
- Part Number: ET90215CR
- UPC: 00782751248824
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

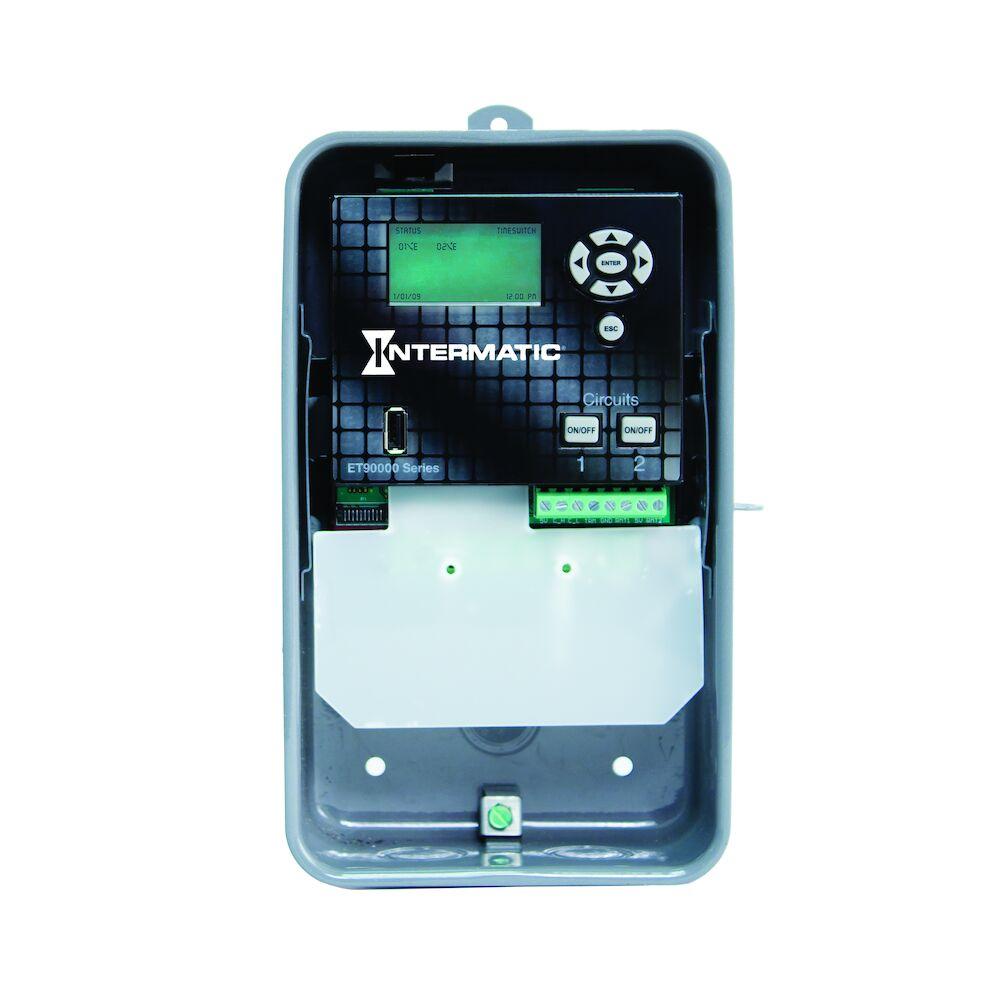

INT-MAT ET90215CR 24-HOUR/7-DAY/365 SPDT,30A,120-277V OLD#(ET70215CR)
Specifications
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Electrical Category:
Tools
Electrical Subcategory:
Adapters Timers Counters And Hour Meters
Electrical Subtype:
Spring Wound Timers
Action:
2 x SPDT
Amperage Rating:
20
Application:
General Purpose, Lighting, HVACR
Brand Name:
Intermatic
Brochure:
Connection:
Wire Lead
Contact Configuration:
1 NO/1 NC
Contact Rating:
30 AMP @ 12 - 240 VAC (General Purpose and Resistive NO Only), 20 AMP @ 12 - 240 VAC (General Purpose and Resistive NO), 10 AMP @ 12 - 240 VAC (General Purpose and Resistive NC), 20 AMP @ 28 VDC (General Purpose and Resistive NO), 10 AMP @ 28 VDC (General
Country Of Origin:
MX
Enclosure:
Type 3R Steel
Installation Link:
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-40 to +120 DEG F, -40 to +50 DEG C
RoHS Compliance:
No
Size:
9.6 HEIGHT X 5.7 WIDTH X 3.6 DEPTH IN, 243 HEIGHT X 145 WIDTH X 91 DEPTH CM
Spec Sheet:
Special Features:
Features: Automatically Detects Input Voltages between 120 and 277 VAC, Up to 4000 Events Plus Holidays Scheduling, Ethernet Capable for Upgrading Firmware and Networking Time Switches and PC Tools, Easy-to-Follow on-Screen Menu, Password Protection, Firmw
Standard:
cULus Listed, cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Timer Duration:
365
Timing Range:
1 S - 365 DAYS
Type:
Astronomic Electronic
UNSPSC:
39122208
Voltage Rating:
120 - 277
Weight:
3.920 L
Manufactured By:
Intermatic
