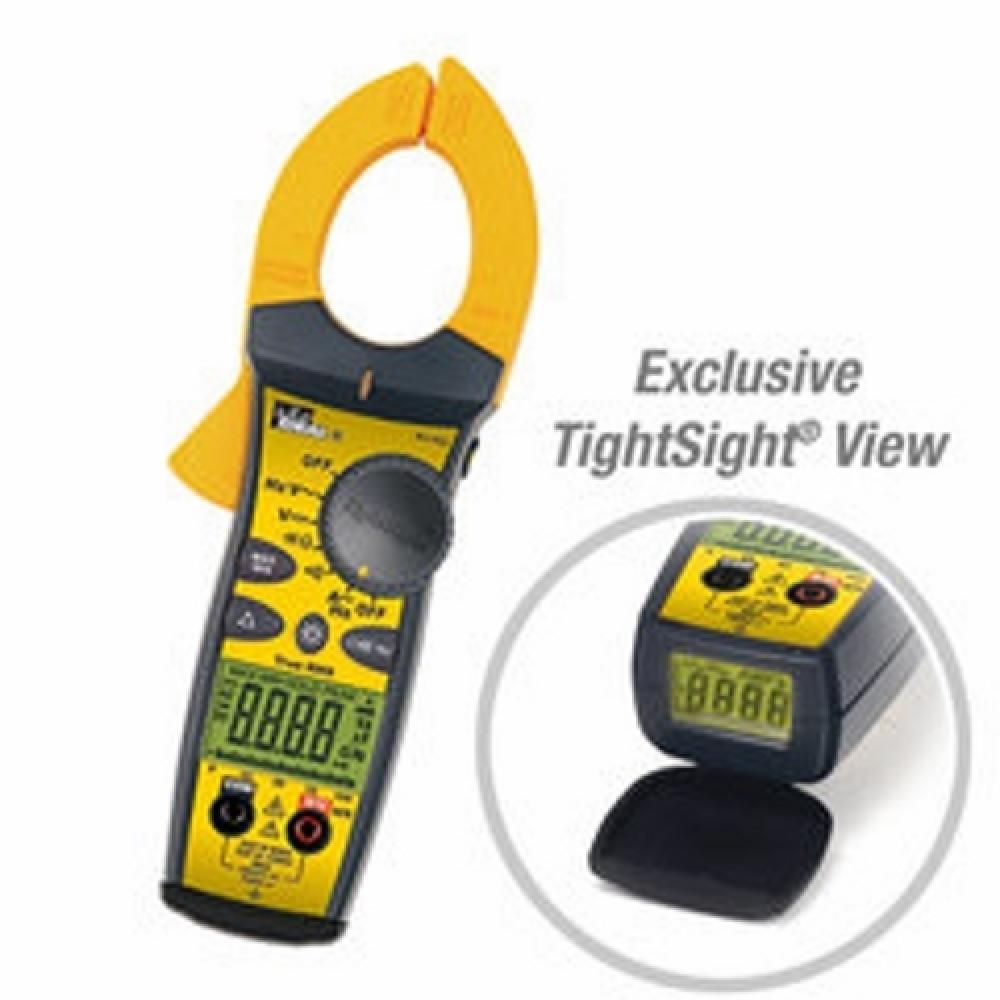

IDEAL by Ideal Industries
- Part Number: 61-763
- UPC: 00783250724017
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Specifications
Details
Electrical Category:
Testing And Measuring
Electrical Subcategory:
General Testing And Measuring
Electrical Subtype:
Multimeters
Accuracy:
Stated Accuracy At 23 DEG C Plus Or Minus 5 DEG C, Less Than 75 PCT R.H
Application:
For A Variety Of Industrial And Commercial Environments
Battery:
100 HR Continuous With Alkaline (61-763, 61-765)
Brand Name:
IDEAL
Brochure:
Capacitance:
0 To 999.9 MFD At 5 PCT Plus 15 Accuracy
Country Of Origin:
USA
Dimensions:
8.700 IN Height X 3.100 IN Width X 1.800 IN Depth
Diode Test:
Yes
Display:
4 Digit LCD With 9999 Counts For Both Displays With 41 Segment Analog Bar Graph On Front Display
Length:
13.0000 IN
Peak Hold:
Yes
Resistance:
0 To 999.9 OHM , 1000 To 9999 OHM At 1.5PCT + 5 Accuracy
RoHS Compliance:
Yes
Rohs Link:
Special Features:
Features: 660 A True Rms Clamps For A Variety Of Industrial And Commercial Environments; Unique Tightsight® Bottom Display Makes Hard-To-Reach Measurements Convenient; Easy-To-Read Displays Feature Large Numbers And Green Glowing Backlight; Cat IV Rating
Standard:
CAT III-1000V, CAT IV - 600V, UL 61010 Listed, CE, C 12966
Stock Type:
Shelf Stock
Sub Brand:
TightSight
Temperature Rating:
32 DEGF To 122 DEGF (0 DEGC To 50 DEGC) At Less Than 70 PCT R.H Operating Temperature, -4 DEGF To 158 DEGF (-20 DEGC To +70 DEGC) Display Temperature, -4 DEGF To 140 DEGF (-20 DEGC To 60 DEGC) At Less Than 80 PCT R.H Without Battery Storage Temperature
Type:
760 Series With TRMS, Capacitance, Frequency
UNSPSC:
41113630
Voltage Rating:
0 to 750VAC, 0 to 999VDC
Weight:
1.790 L
Manufactured By:
Ideal Industries
