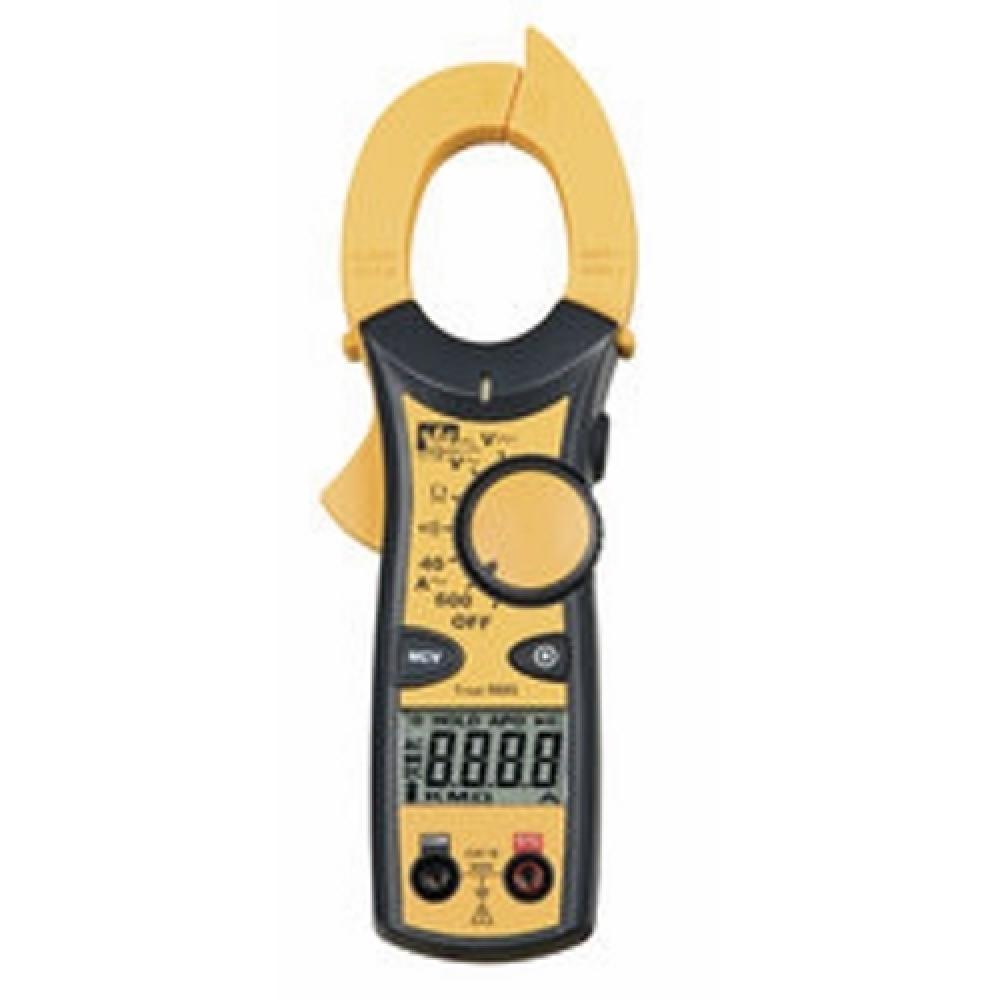

IDEAL 61-746 by Ideal Industries
- Part Number: 61-746
- UPC: 00783250682478
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Specifications
Details
Electrical Category:
Testing And Measuring
Electrical Subcategory:
General Testing And Measuring
Electrical Subtype:
Multimeters
Accuracy:
Stated Accuracy At 23 DEG C Plus Or Minus 5 DEG C, Less Than 75 PCT R.H
Battery:
400 HR Continuous With Alkaline (61-744), 250 HR Continuous With Alkaline (61-746) (2) 1.5 V "AAA" Batteries (NEDA R03) Includes An Isolated Battery Compartment
Brand Name:
IDEAL
Brochure:
Country Of Origin:
USA
Dimensions:
8 IN Height X 2.600 IN Width X 1.500 IN Depth
Display:
3-3/4 Digit LCD With 4000 Counts
Length:
10.0000 IN
Resistance:
400 OHM/4 KOHM/ 40 KOHM/400 KOHM At 1 PCT + 4 Digits Accuracy, 4 MOHM At 1.5 PCT + 4 Digits Accuracy, 40 MOHM At 3 PCT + 5 Digits Accuracy
RoHS Compliance:
Yes
Rohs Link:
Special Features:
Features: Measures Up To 600AAC; Non-Contact Voltage Indicator (70V - 600VAC); Tapered Jaws With Hook Tip; Auto/Manual Ranging; Data Hold; Auto Power Off; Low Battery Indicator; CAT III- 600V; 2-Year Warranty; Auto/Manual Ranging Clamp Meter; Non-Contact V
Standard:
CAT III-600V, UL 61010 Listed, CE, C 12966
Stock Type:
Shelf Stock
Sub Brand:
Clamp-Pro
Temperature Rating:
32 DEGF To 122 DEGF (0 DEGC To 50 DEGC) At Less Than 70 PCT R.H Operating Temperature, -4 DEGF To 140 DEGF (-20 DEGC To 60 DEGC) At Less Than 80 PCT R.H Without Battery Storage Temperature
Type:
600 Amp With True RMS
UNSPSC:
41113630
Voltage Rating:
400 to 600VAC/DC
Weight:
1.050 L
Manufactured By:
Ideal Industries
