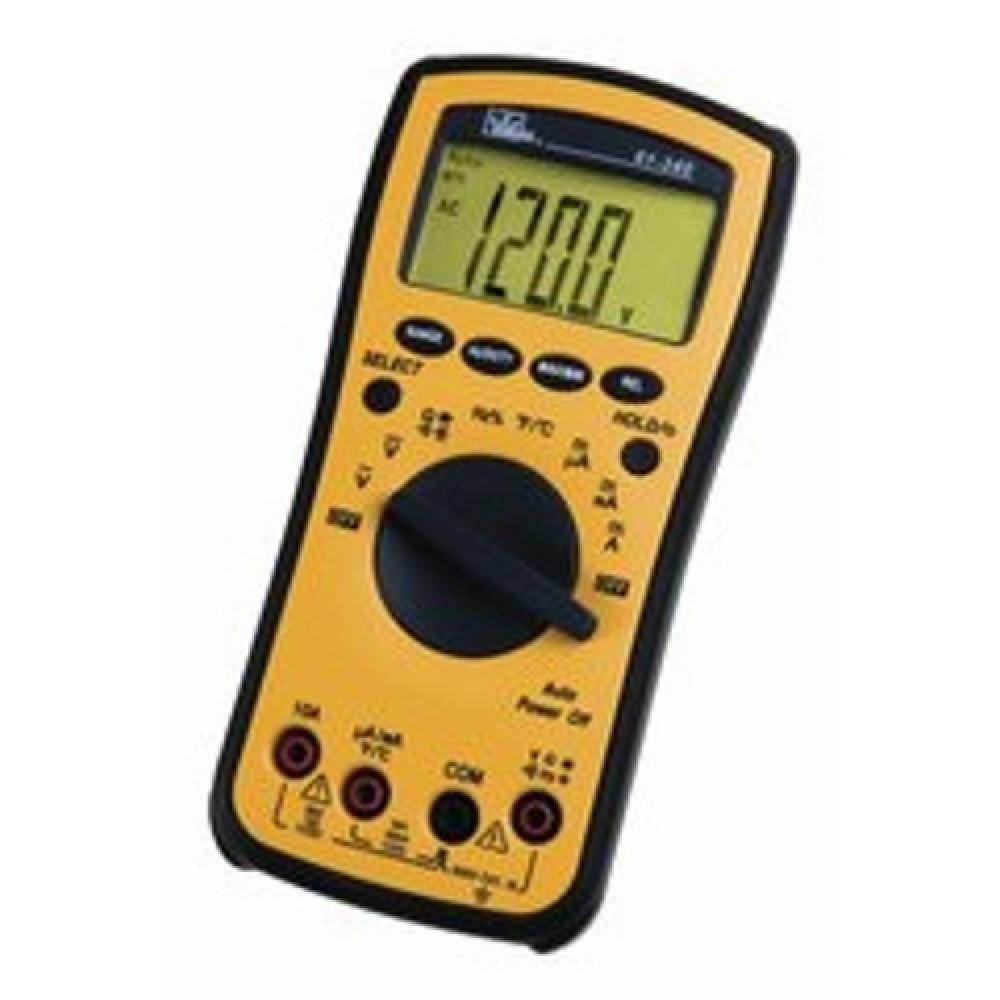

IDEAL 61-340 by Ideal Industries
- Part Number: 61-340
- UPC: 00783250682539
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Specifications
Details
Electrical Category:
Testing And Measuring
Electrical Subcategory:
General Testing And Measuring
Electrical Subtype:
Multimeters
Accuracy:
Stated Accuracy At 73 DEG C Plus Or Minus 41 DEG C, Less Than 75 PCT R.H
Amperage Rating:
400µ - 10A AC/DC
Battery:
200 HR (61-340), 150 HR (61-342) 9 VDC NEDA 1604
Brand Name:
IDEAL
Brochure:
Capacitance:
400 NFD/4 MFD/40MFD At Plus Or Minus (3 PCTPlus 5) Accuracy, 400 MFD/4000 MFD At Plus Or Minus (20 PCTPlus 5) Accuracy
Country Of Origin:
CHN
Dimensions:
7 IN Height X 3.500 IN Width X 1.900 IN Depth
Diode Test:
Yes
Display:
3999 Count LCD / 3-3/4 Digit
Frequency Rating:
10 - 4M Hz
Length:
10.7500 IN
Model:
340
Resistance:
400 KOHM/4 KOHM/ 40 KOHM At ±(1 PCT+2) Accuracy, 4 MOHM At ±(1.2 PCT+2) Accuracy, 40 MOHM At ±(2 PCT+5) Accuracy
RoHS Compliance:
Yes
Rohs Link:
Special Features:
Features: AC/DC Voltage; AC/DC Current; Resistance; Audible Continuity; Capacitance; Frequency; Temperature; Relative Mode; Backlight; Min/Max; Data Hold; Low Battery Indication; Auto Power Off; 2-Year Warranty; Includes: Test Leads (TL-310), 9 V Battery,
Standard:
CAT III-600V, UL 61010 Listed, CE, C 12966
Stock Type:
Shelf Stock
Sub Brand:
Test-Pro
Temperature Rating:
32 DEGF To 104 DEGF (0 DEGC To 40 DEGC) At Less Than 75 PCT R.H Operating Temperature, -4 DEGF To 140 DEGF (-20 DEGC To 60 DEGC) At Less Than 80 PCT R.H Without Battery Storage Temperature
Type:
340 Series
UNSPSC:
41113630
Voltage Rating:
4 - 600VAC, 400m - 600VDC
Weight:
1.350 L
Manufactured By:
Ideal Industries
