WT CONN, NON-NEMA,30A,120/208V, 3PH WYE by Hubbell Wiring Device-Kellems
- Part Number: HBL29W09
- UPC: 00783585456454
- Availability:
Product Overview

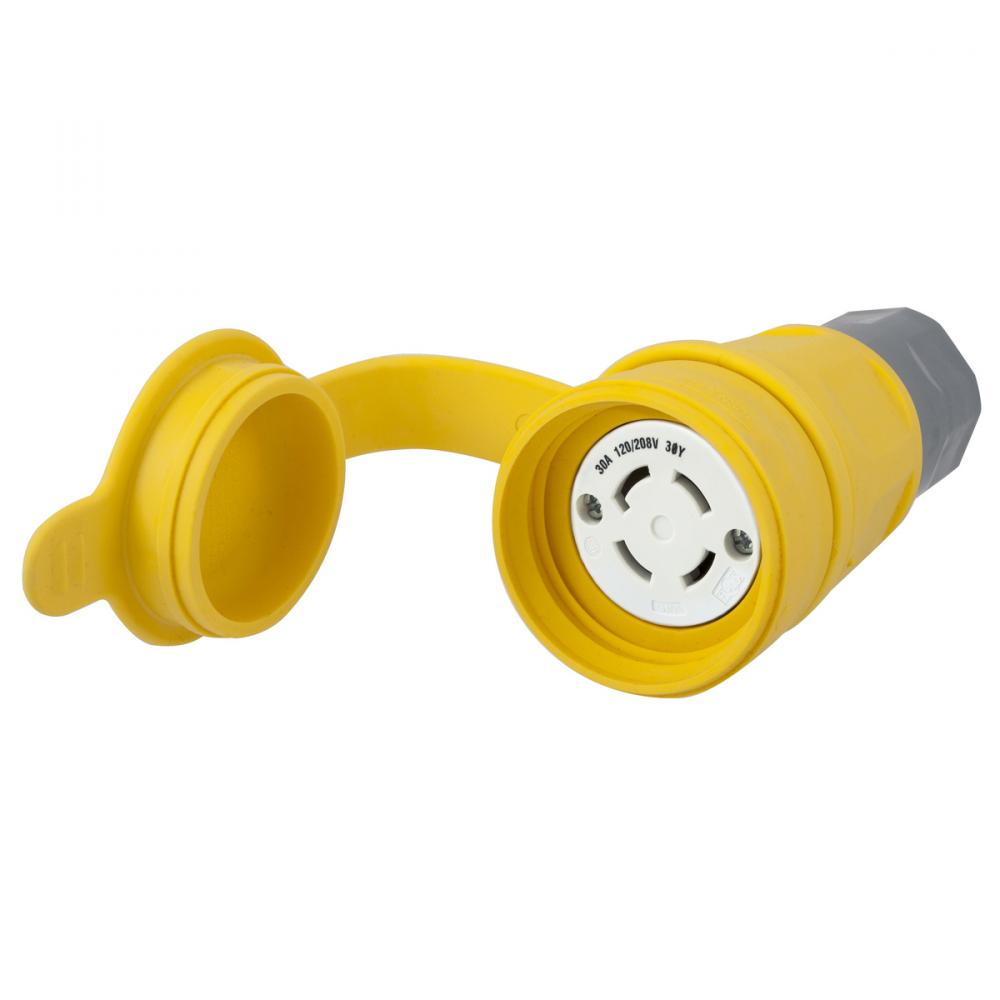

Watertight Twist-Lock® Connector, 30A, 3 Phase WYE 120/208VAC, 4-Pole, 4 Wire, Thermoplastic elastomer, NON-NEMA
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
30
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Conductor Range:
#14AWG to #10AWG
Connection:
Terminal Screws
Country Of Origin:
US
Environmental Conditions:
Water Tight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
3-Wire Non-Grounding
Number Of Poles:
4-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.77 in x 2.77 in x 5.67 in
Spec Sheet:
Special Features:
Water-Tight
Standard:
Meets NEMA WD-1, WD-6 And ANSI Standards
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
3-Phase Y 120/208
Warranty Link:
Weight:
.300 L
Manufactured By:
Hubbell Wiring Device-Kellems
