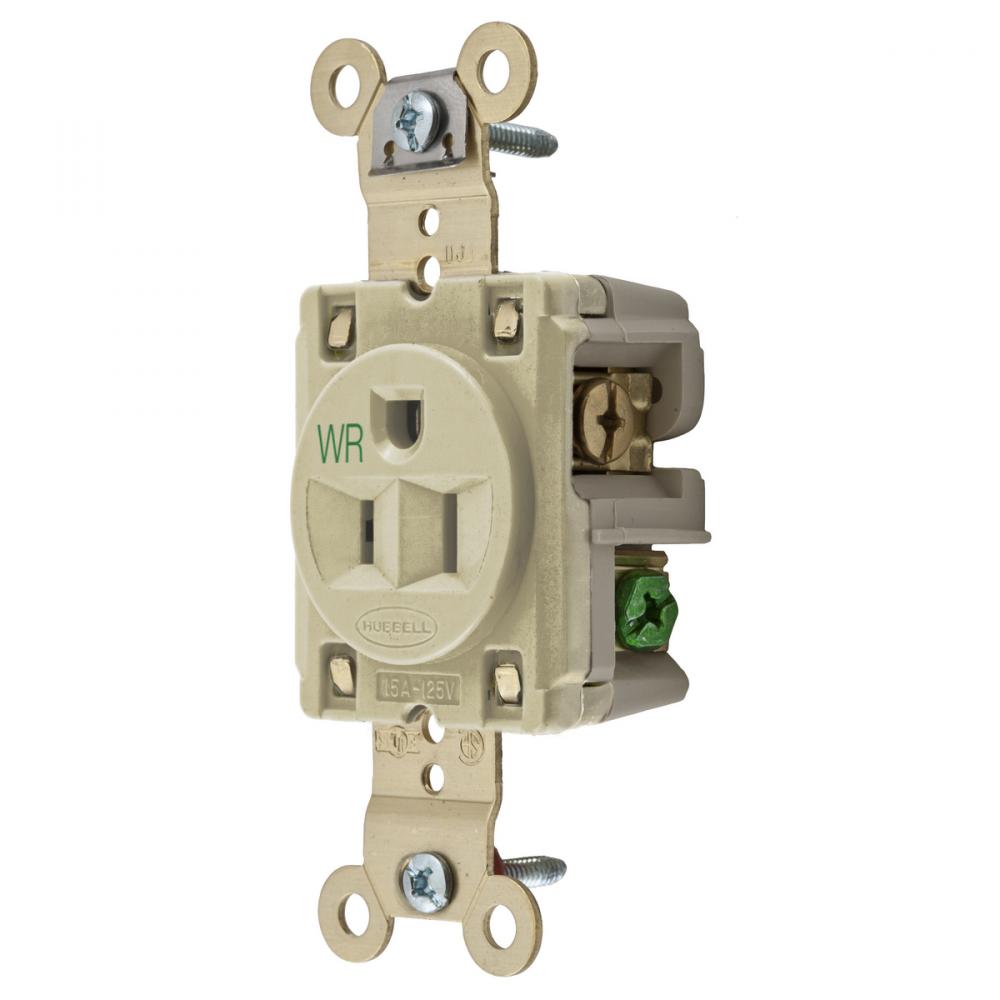

WR RCPT, SING, SB, HD, 15A 125V, IV by Hubbell Wiring Device-Kellems
- Part Number: HBL5261IWR
- UPC: 00783585320625
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Receptacles, Weather-Resistant Single, Industrial Grade, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, Ivory, Single Pack.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Extra Heavy Duty Specification Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Ivory
Connection:
Back and Side Wired
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.28 in x 1.63 in x 1.19 in
Spec Sheet:
Special Features:
Weather Resistant
Standard:
Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-598;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.200 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
