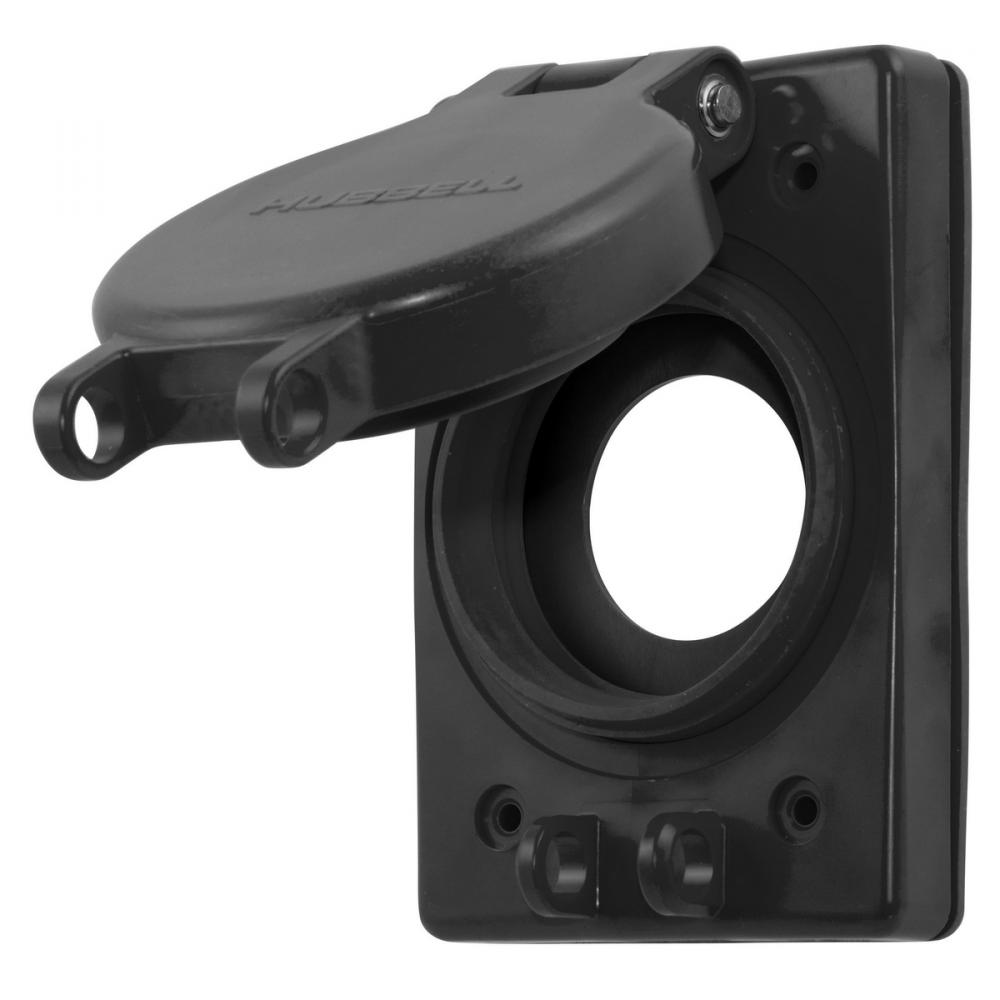

WP LIFT COVER ASSY, 15A/20A LESS REC BK by Hubbell Wiring Device-Kellems
- Part Number: HBL6500BK
- UPC: 00783585511252
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Watertight Devices, Accessories, Weather Protective Lift Cover, Black
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15A
Application:
Commercial Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Back and Side Wired Terminal Screws
Country Of Origin:
US
Dielectric Strength:
2,000V for 1 Minute
Environmental Conditions:
Indoor Dry Unless Protected By Other Means
Material:
Composite
Mounting:
Mounting Screws
NEMA Rating:
6-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single
Size:
4.56 in x 3.10 in x 1.20 in
Spec Sheet:
Special Features:
Smooth Face
Standard:
Meets NEMA WD-1, WD-6 And ANSI Standards
Sub Brand:
Straight Blade Devices
Temperature Rating:
-40 Degrees C to 70 Degrees C
Type:
Lift Covers
UNSPSC:
39121406
Voltage Rating:
250V AC
Warranty Link:
Wattage:
3750
Weight:
.350 L
Wire Size:
#14 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
