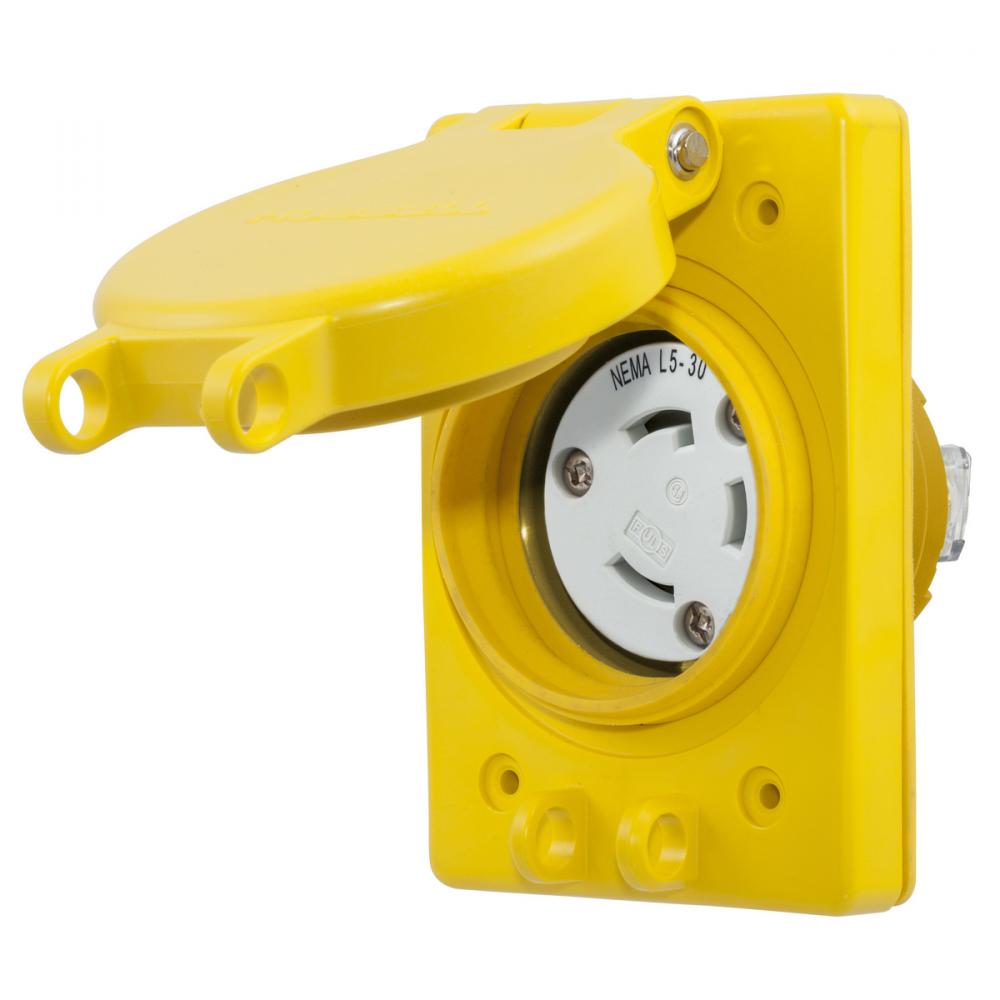

WATERTIGHT RECEP ASSY,NEMA L5-30R by Hubbell Wiring Device-Kellems
- Part Number: HBL69W47
- UPC: 00783585433240
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 125V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-30R, Yellow
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Elastomer/Composite
Mounting:
Screw Mount
NEMA Rating:
L5-30R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
4.56 in x 3.10 in x 2.92 in
Spec Sheet:
Special Features:
Watertight
Standard:
IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
3750
Weight:
.650 L
Wire Size:
#18 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
