WATERTIGHT RECEP, 30A 277/480V, L22-30 by Hubbell Wiring Device-Kellems
- Part Number: HBL69W82
- UPC: 00783585433325
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

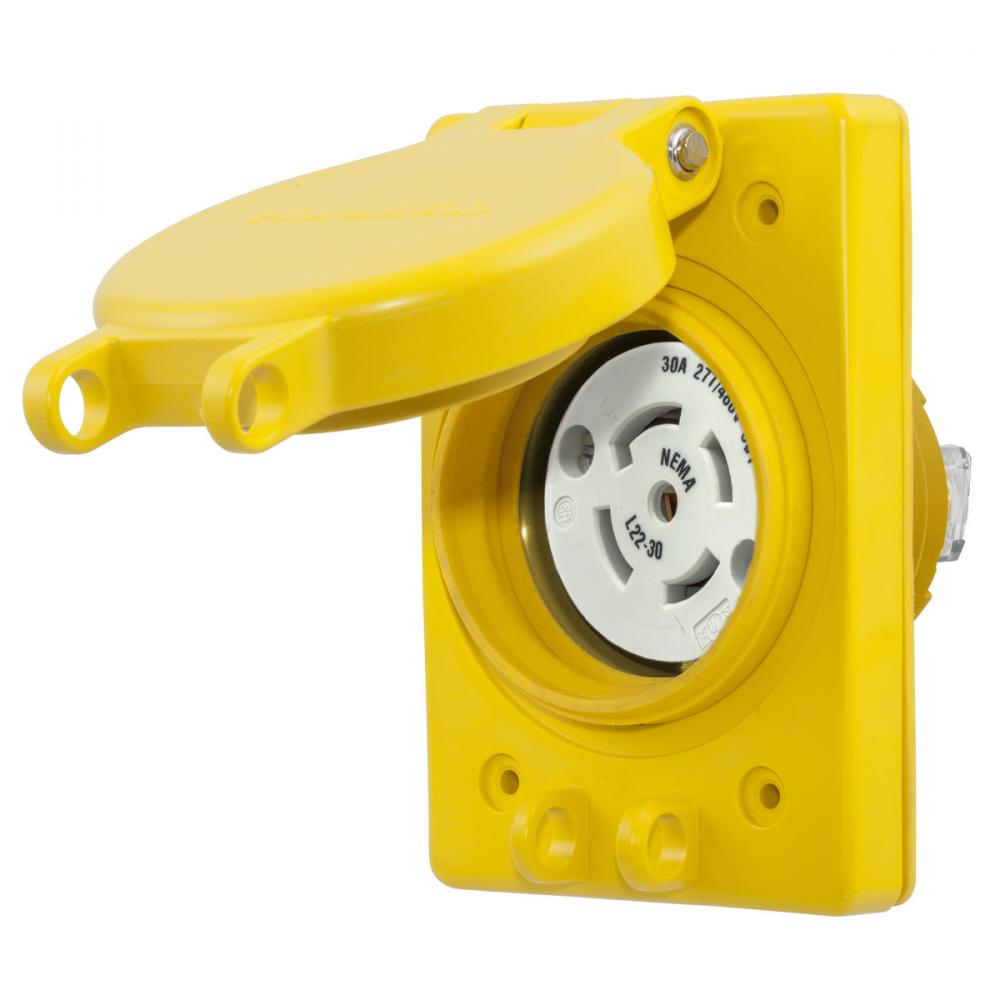

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase WYE 277/480V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L22-30R, Yellow
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Watertight
Material:
Elastomer/Composite
Mounting:
Screw Mount
NEMA Rating:
L22-30R
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
4.56 in x 3.10 in x 2.92 in
Spec Sheet:
Special Features:
Watertight
Standard:
IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards
Sub Brand:
Twist-Lock Devices
Tech Drawing Link:
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
3-Phase Y 277/480
Warranty Link:
Wattage:
14400
Weight:
.300 L
Wire Size:
#18 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
