WATERTIGHT 15A/277V, L7-15 DUPLX REC by Hubbell Wiring Device-Kellems
- Part Number: HBL65W34D
- UPC: 00783585528762
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

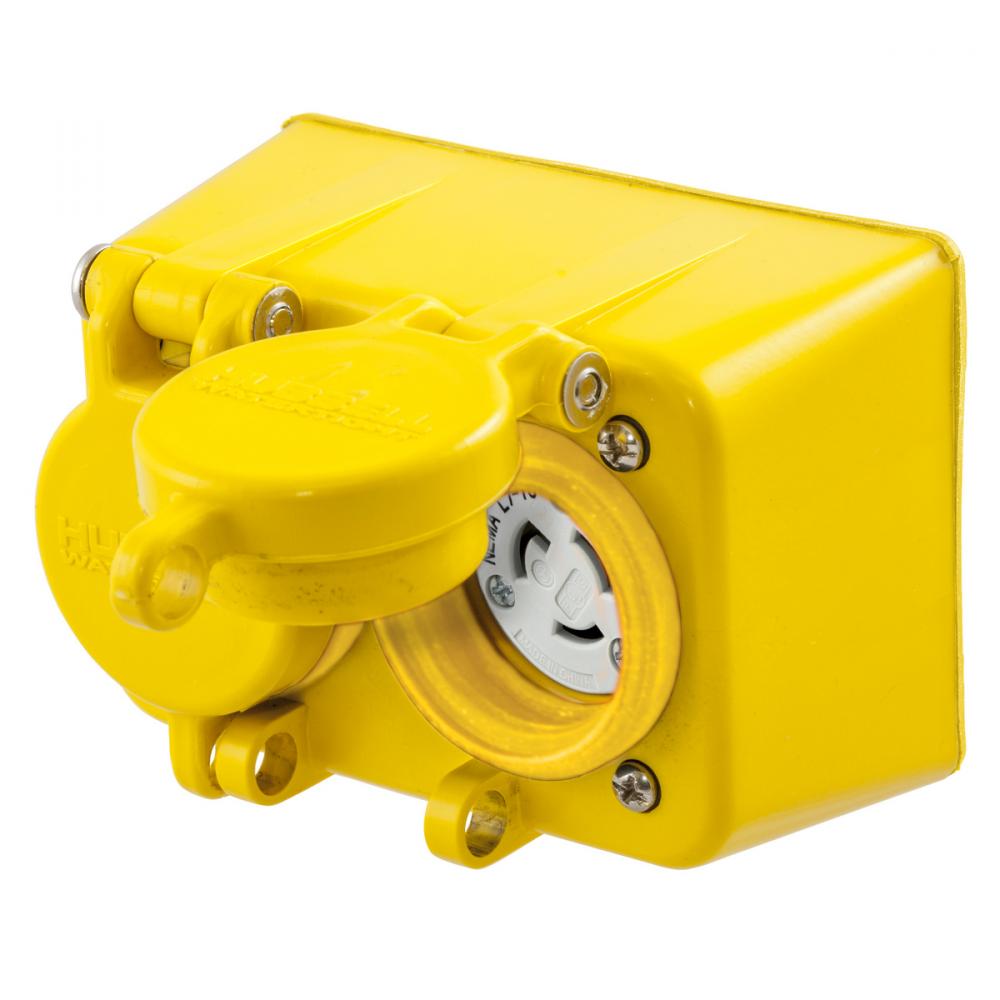

Watertight Devices, Twist-Lock® Duplex Receptacle with Lift Cover, 15A, 277VAC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-15R, Yellow.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Industrial/Commercial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Terminal Screws
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Material:
Composite
Mounting:
Mounting Screws
NEMA Rating:
L7-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Standard Product
Standard:
IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards
Sub Brand:
Straight Blade
Type:
Duplex Receptacle
UNSPSC:
39121406
Voltage Rating:
277
Warranty Link:
Wattage:
4155
Weight:
.300 L
Wire Size:
#18 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
