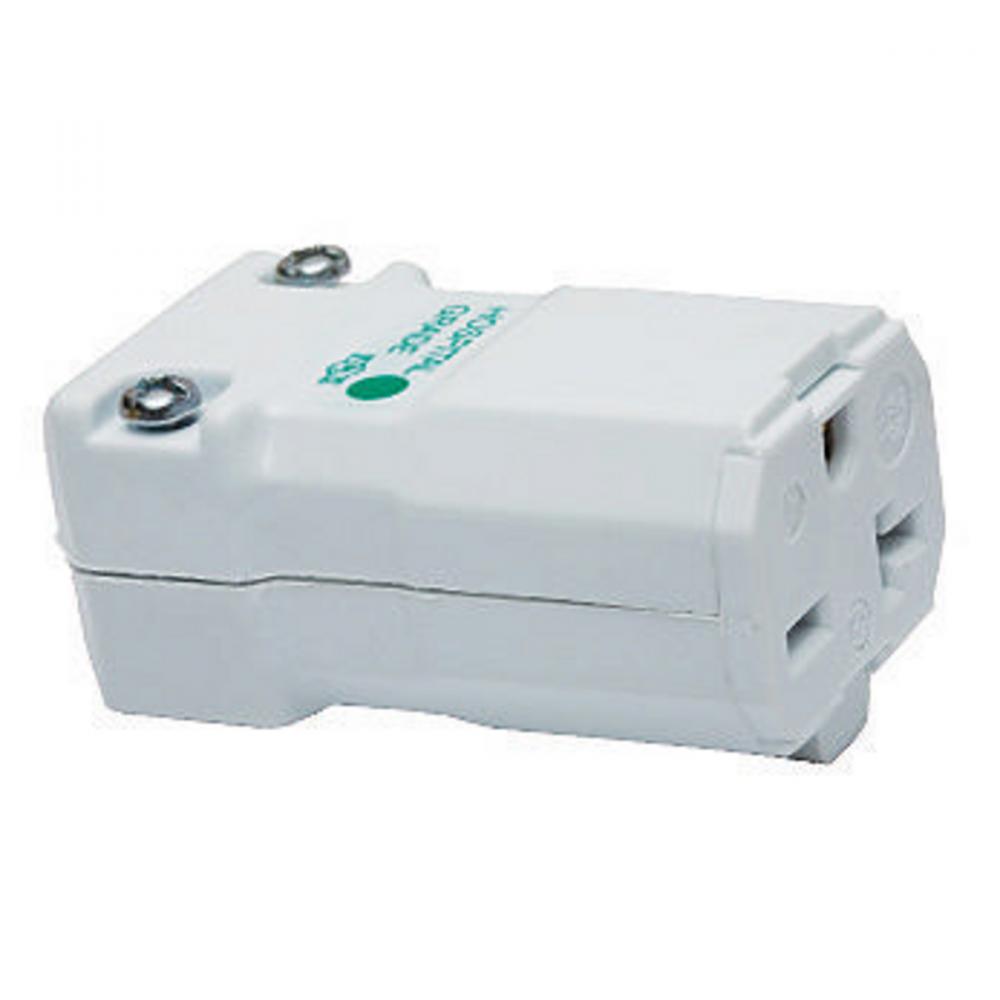

VALISE CONN, HG, 20A 250V, 6-20R, WH by Hubbell Wiring Device-Kellems
- Part Number: HBL8469V
- UPC: 00783585019406
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Female Connector Body, Valise Series, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, White, Single Pack.
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
20
Application:
Hospital Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Conductor Range:
#18AWG to #12AWG
Connection:
Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
Insulated Body
Material:
Nylon
Mounting:
Cord Mounted
NEMA Rating:
6-20R
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
2.63 in x 1.25 in x 1.13 in
Spec Sheet:
Special Features:
Standard Product
Standard:
CSA Certified to C22.2 No 42 File 280C;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E1706
Sub Brand:
Straight Blade
Temperature Rating:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type:
Connector Body
UNSPSC:
39121421
Voltage Rating:
250
Warranty Link:
Weight:
.150 L
Manufactured By:
Hubbell Wiring Device-Kellems
