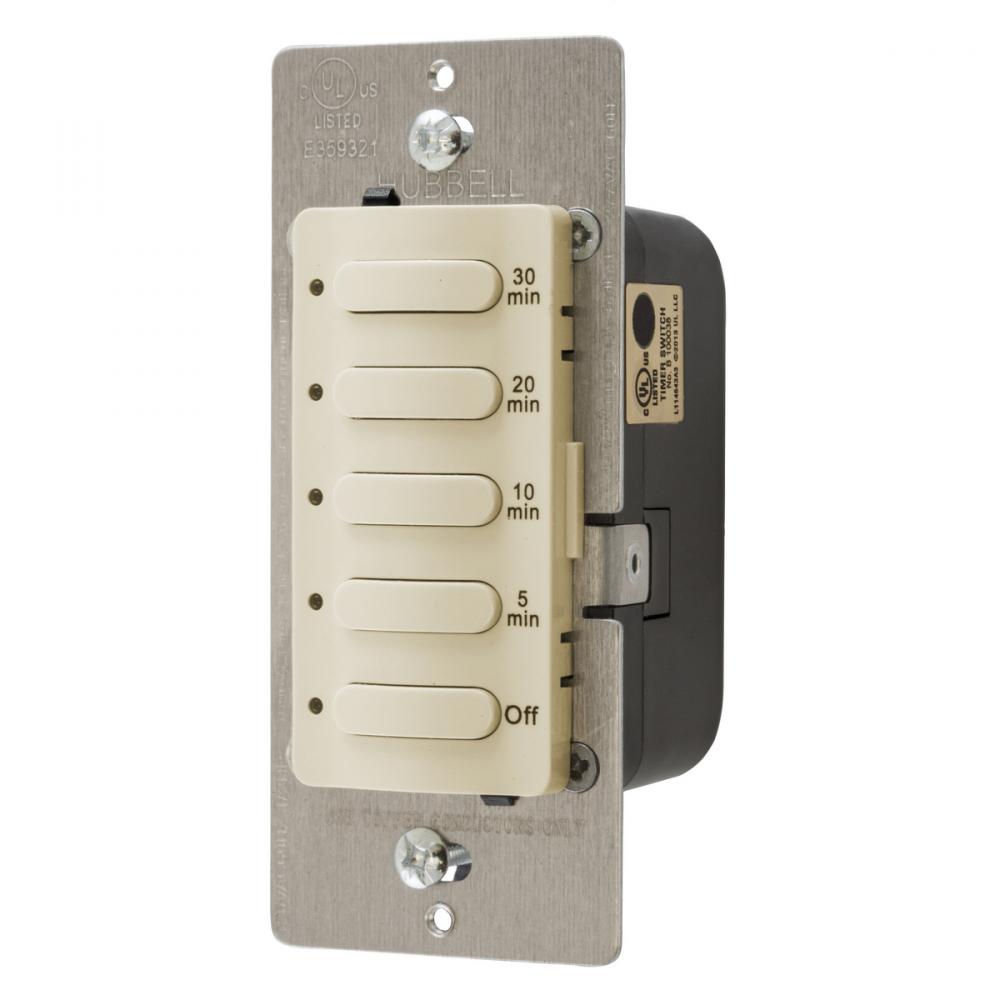

TIMER 30MIN, 8.3A 120/277V , IVORY by Hubbell Wiring Device-Kellems
- Part Number: DT5030I
- UPC: 00783585256405
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Timer Switches, Single Pole, 8.3A120/277V AC, 30 Minute Delay Time Out, Ivory
Specifications
Details
Category:
Lighting Controls
Amperage Rating:
8.3
Application:
Circuit Control
Brand Name:
WIRING DEVICE-KELLEMS
Connection:
Terminal Screws
Contact Rating:
8.3A
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Mounting:
Mounting Screws
Number Of Poles:
2-Pole
Operating Temperature:
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
3.81 in x 1.75 in x 2.27 in
Spec Sheet:
Special Features:
Standard Product
Standard:
cULus Listed To UL60730-1 And UL60730-2;Meets ASHRAE 90.1, and CEC Title 24 Compliant
Sub Brand:
Timers
Tech Drawing Link:
Timer Duration:
30 Minutes
Timing Range:
OFF, 5, 10,20, 30 minutes
Type:
30 Minutes
UNSPSC:
39122208
Voltage Rating:
120/277
Wall Plate Color:
Ivory
Warranty Link:
Wattage:
1000/1,400
Weight:
.350 L
Manufactured By:
Hubbell Wiring Device-Kellems
