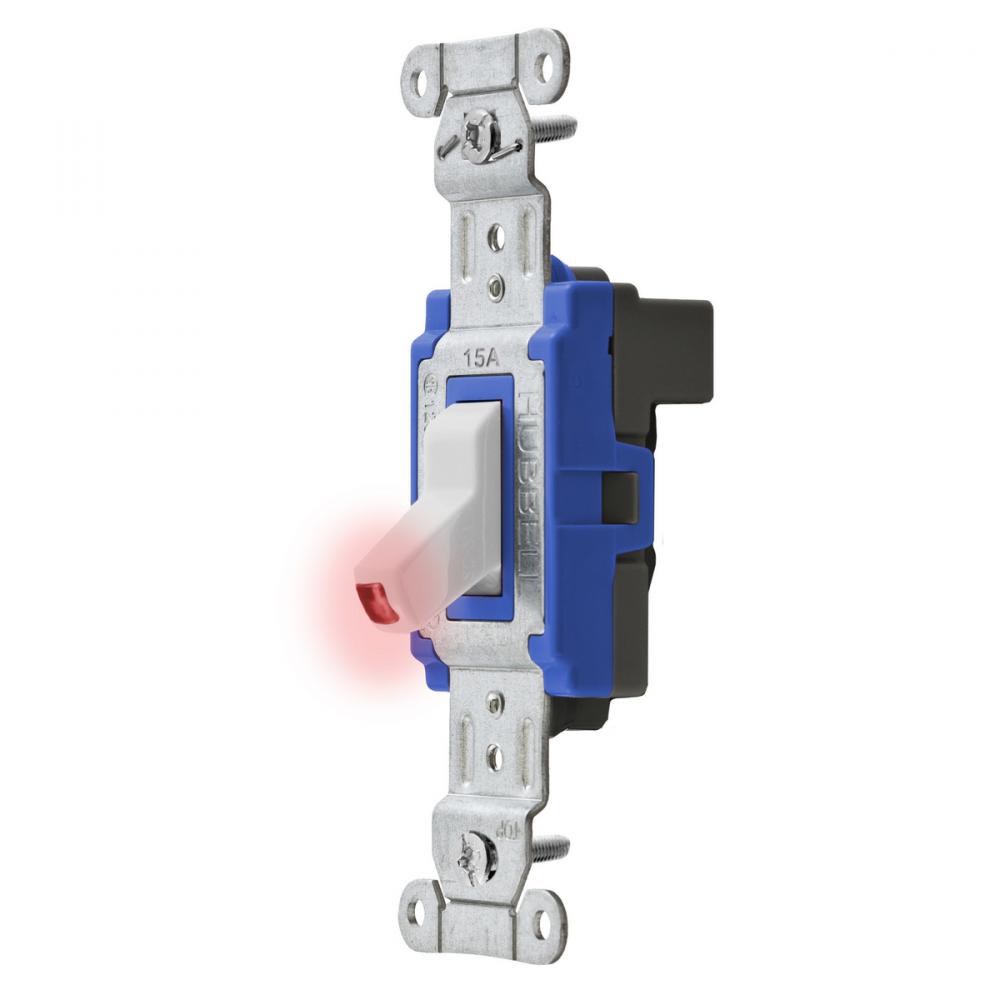

SWITCH,SNAP,SP,PILOT,15A120/277V,WH,NA by Hubbell Wiring Device-Kellems
- Part Number: SNAP1201PLWNA
- UPC: 00783585186177
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, Pilot Single Pole, 15A 120/277V AC, White Toggle, North American
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
Positive Snap
Actuator:
Toggle
Amperage Rating:
15
Application:
SNAPConnect Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Connectorized
Contact Configuration:
Two Position
Contact Rating:
Per UL 20
Country Of Origin:
CN
Enclosure:
None
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Insulation:
None
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
Number Of Poles:
Single Pole
Operating Cycles:
50,000 Cycles
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
4.18 in x 1.3 in x 1.74 in
Spec Sheet:
Special Features:
SNAP Connect, LED Indicator
Standard:
UL Listed
Sub Brand:
SNAPConnect Series
Tech Drawing Link:
Type:
Toggle
UNSPSC:
39122211
Voltage Rating:
120-277
Warranty Link:
Wattage:
4155
Weight:
.150 L
Manufactured By:
Hubbell Wiring Device-Kellems
