SWITCHED ENC, WITH HBL2730A by Hubbell Wiring Device-Kellems
- Part Number: SE2730A
- UPC: 00783585006352
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

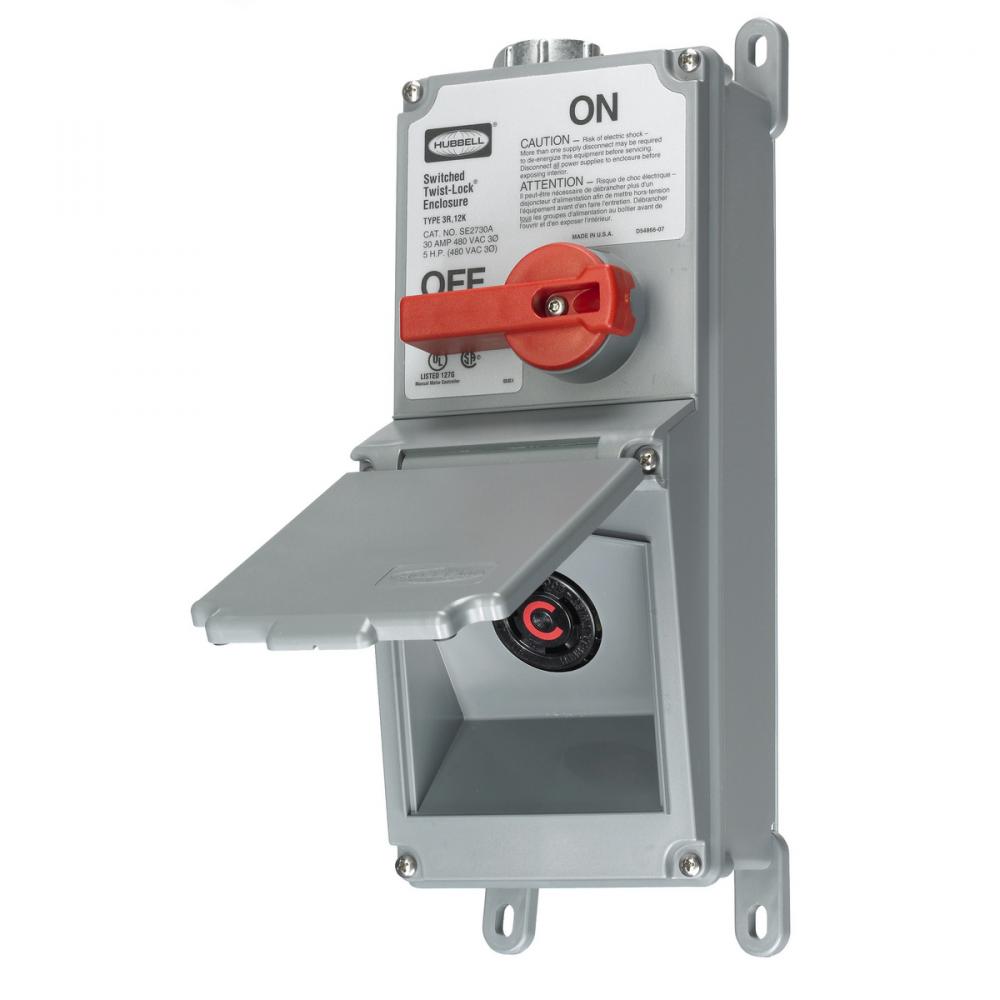

Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Twist-Lock Enclosure With pre-wired HBL2730 Receptacle, 30A Twist-Lock®, 3 Phase 480 V AC, NEMA L16-30R, Terminal Screws, Gray.
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
Snap
Actuator:
Lever
Amperage Rating:
30A Max
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Contact Configuration:
Two Position
Contact Rating:
30A
Country Of Origin:
PR
Enclosure:
Non-Metallic
Environmental Conditions:
NEMA 4X
Frequency Rating:
60Hz
Installation Link:
Line Drawing Link:
Material:
Composite
Mounting:
Mounting Feet
NEMA Rating:
L16-30R
Number Of Poles:
Three Pole
Operating Cycles:
6,000 Cycles
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
11.38 in x 4.88 in x 4.38 in
Spec Sheet:
Special Features:
Standard Product with HBL2730
Standard:
CSA Certified Type 3R and 12K Enclosure Rating;Listed to UL Standard
Sub Brand:
Circuit-Lock
Type:
Switched Enclosure
UNSPSC:
39122205
Voltage Rating:
3 Phase 480
Warranty Link:
Wattage:
14400
Weight:
4.000 L
Manufactured By:
Hubbell Wiring Device-Kellems
