SWITCH, SPEC, DP, 15A 120/277V, B+S, BR by Hubbell Wiring Device-Kellems
- Part Number: CSB215
- UPC: 00783585153827
- Availability:
Product Overview

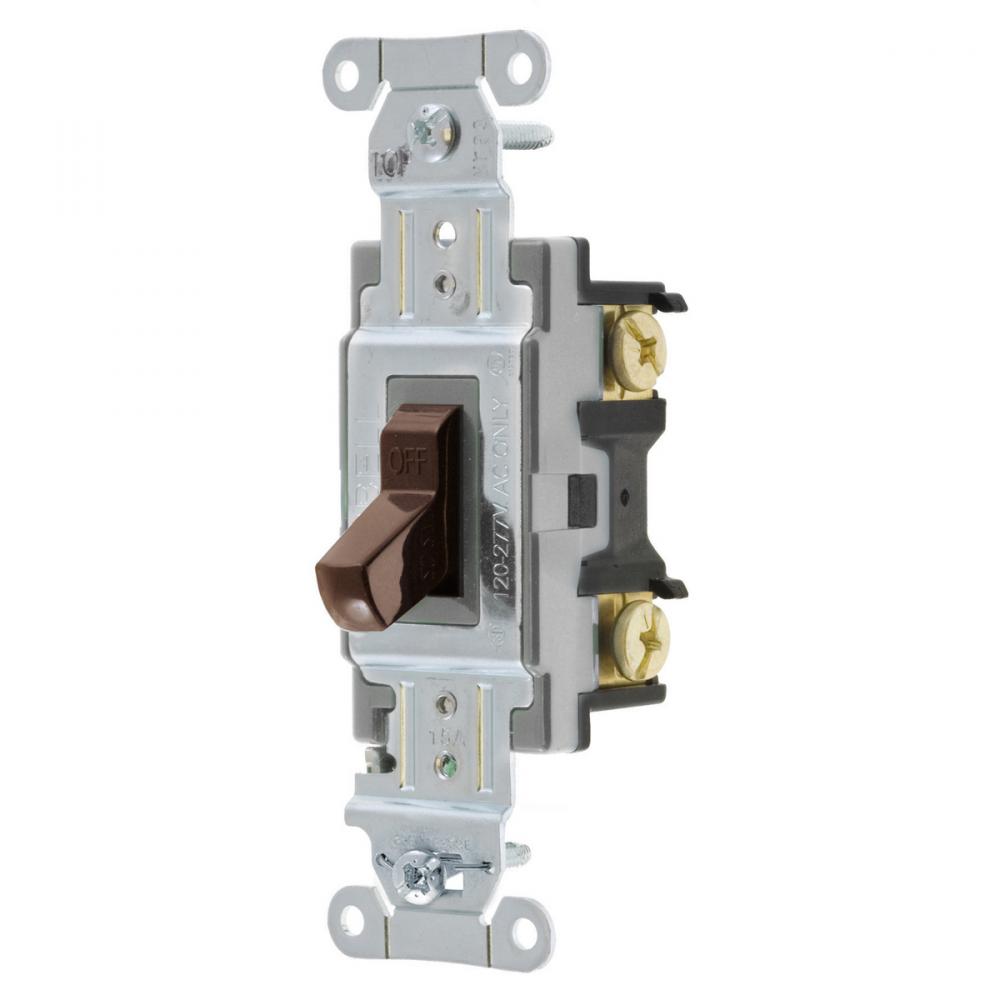

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, Brown
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
Positive Snap
Actuator:
Toggle
Amperage Rating:
15
Application:
Commercial Spec Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Brown
Connection:
Back and Side Wired
Contact Configuration:
Two Position
Contact Rating:
Per UL 20
Country Of Origin:
CN
Enclosure:
None
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
None
Line Drawing Link:
Material:
Nylon
Mounting:
Screw Mount
Number Of Poles:
Double Pole
Operating Cycles:
50,000 Cycles
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
4.18 in x 1.49 in x 1.83 in
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed
Sub Brand:
AC Toggle Switches
Tech Drawing Link:
Type:
Toggle
UNSPSC:
39122211
Voltage Rating:
120-277
Warranty Link:
Wattage:
4155
Weight:
.150 L
Manufactured By:
Hubbell Wiring Device-Kellems
