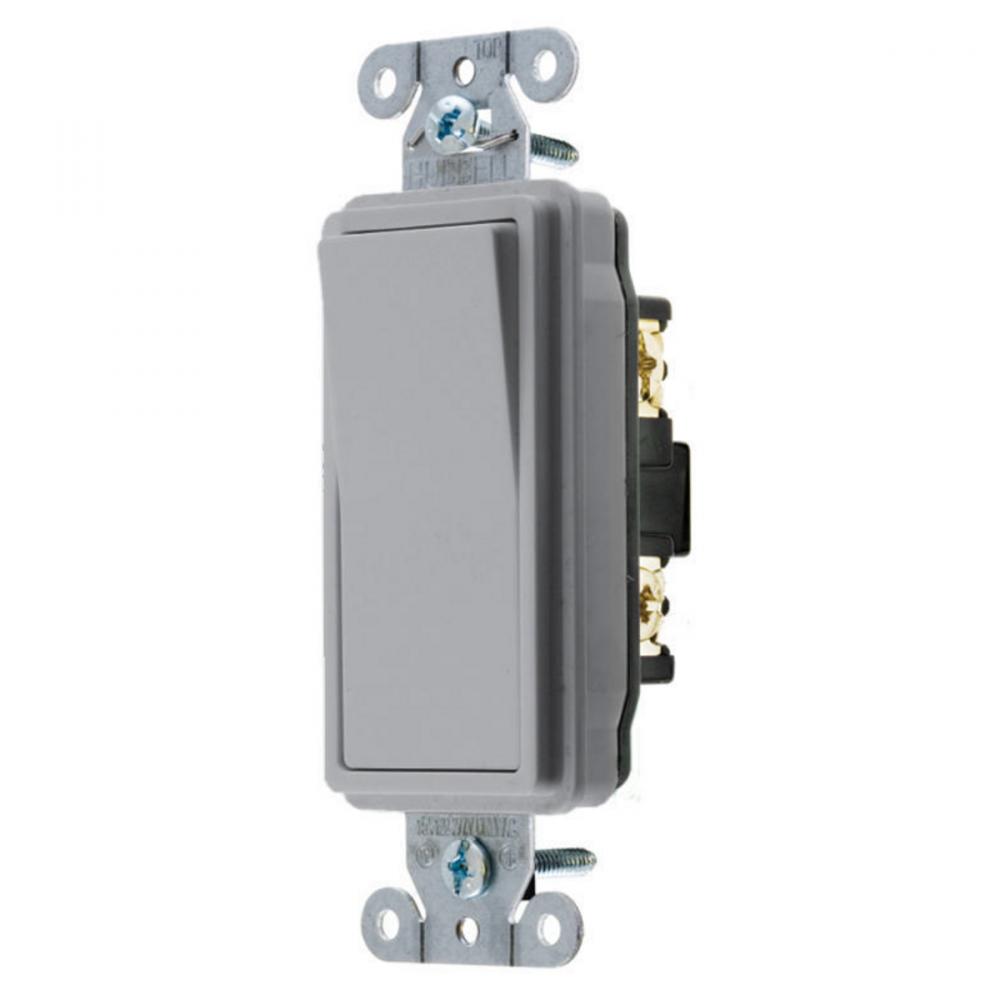

SWITCH, DECO SER, 4W, 20A 120/277V, GY by Hubbell Wiring Device-Kellems
- Part Number: DS420GY
- UPC: 00783585154480
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Decorator Switch, Specification Grade, Four Way, 20A 120/277V AC, Back and Side Wired
Specifications
Details
Category:
Lighting Controls
Action:
DPDT
Actuator:
Rocker
Amperage Rating:
20
Application:
Commercial Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Connection:
Terminal Screw
Contact Configuration:
2 Position
Contact Rating:
Per UL 20
Country Of Origin:
CN
Enclosure:
None
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Indicator:
None
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
Number Of Poles:
Double Pole
Operating Cycles:
50,000 Cycles
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
4.28 in x 1.73 in x 1.67 in
Spec Sheet:
Special Features:
Standard Product
Standard:
UL Listed
Sub Brand:
AC Decorator Switches
Type:
Rocker/Decorator
UNSPSC:
39122226
Voltage Rating:
120-277
Warranty Link:
Wattage:
5540
Weight:
.200 L
Manufactured By:
Hubbell Wiring Device-Kellems
