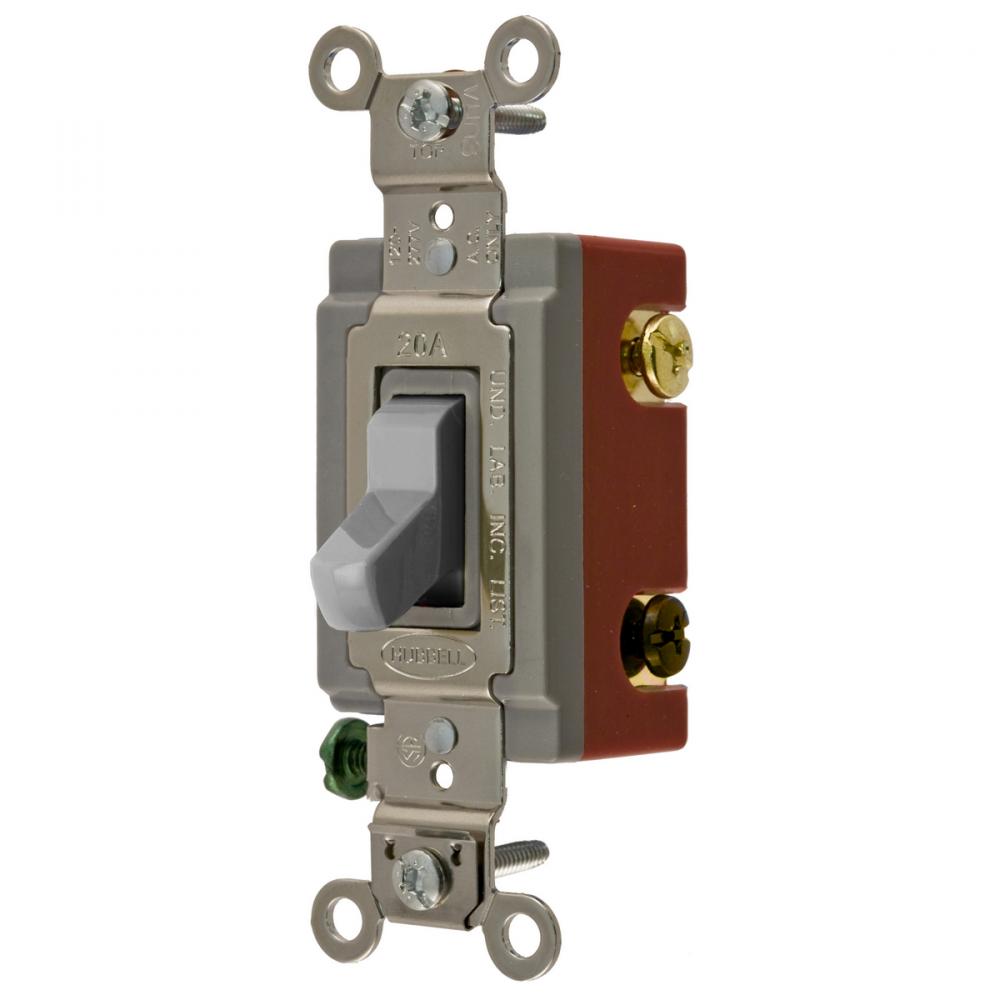

SWITCH, COM, 3W, 20A 120/277V, GY, USA by Hubbell Wiring Device-Kellems
- Part Number: CS1223GYU
- UPC: 00783585150666
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Switches and Lighting Controls, Heavy Duty Construction Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Gray, USA
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
Positive Snap
Actuator:
Toggle
Amperage Rating:
20A
Application:
Commercial Spec Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Connection:
Back and Side Wired
Contact Configuration:
Two Position
Contact Rating:
Per UL 20
Country Of Origin:
US
Enclosure:
None
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
None
Line Drawing Link:
Mounting:
Screw Mount
Number Of Poles:
Three Way
Operating Cycles:
50,000 Cycles
Operating Temperature:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard Sized
Special Features:
Made in the USA
Standard:
NEMA WD1, UL20
Sub Brand:
AC Toggle Switches
Type:
General Purpose Switches
UNSPSC:
39122211
Voltage Rating:
120/277
Wattage:
5540
Weight:
.250 L
Manufactured By:
Hubbell Wiring Device-Kellems
