SPIDER BOX STRAIGHT BLADE by Hubbell Wiring Device-Kellems
- Part Number: SBSB2
- UPC: 00783585369471
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview

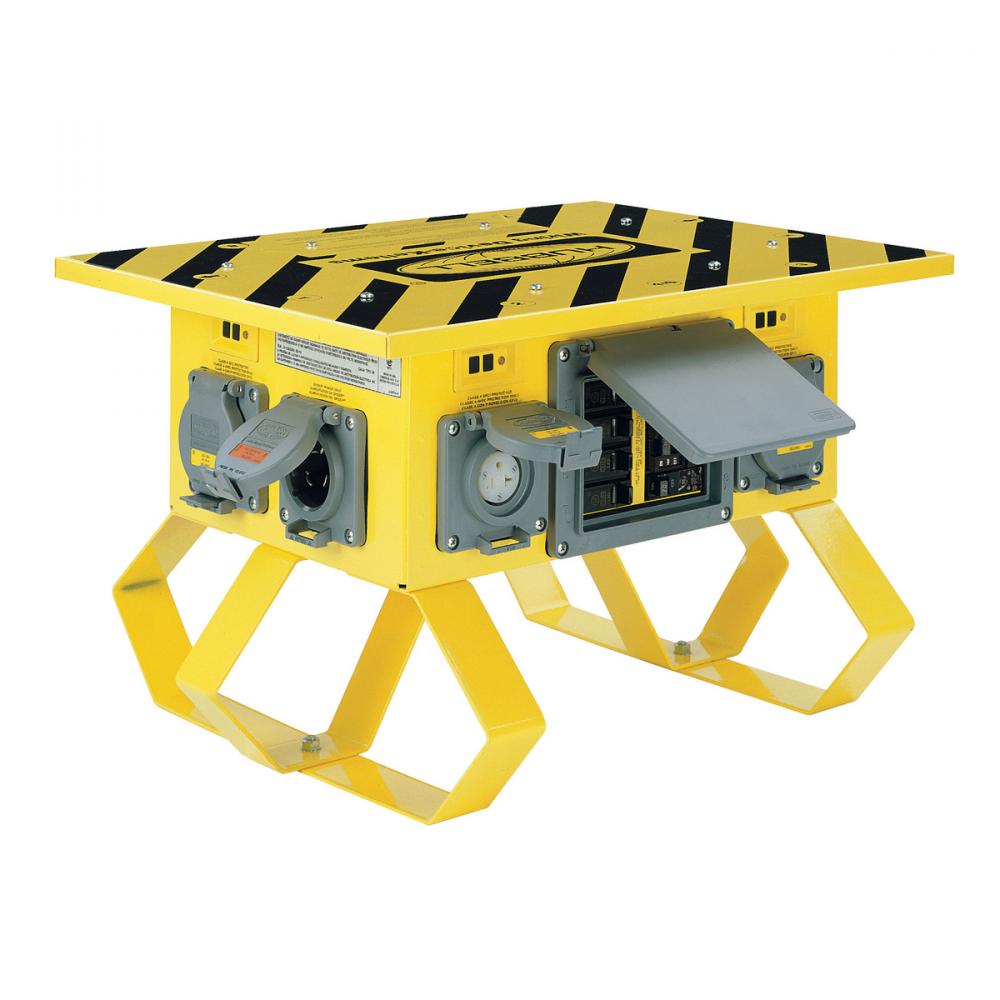

Temporary Power Products, Spider Portable Power, Complete Unit, Straight Blade Style, With 6) 20A 125V Receptacles- 1) 30A 250V Locking Receptacle- 1) 50A 125/250V Inlet and
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
50
Application:
Heavy Duty Portable
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Yellow
Connection:
Pre-Wired
Country Of Origin:
PR
Environmental Conditions:
Indoor and Outdoor
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Non-Mounted, Portable
NEMA Rating:
6) 5-20R, 1) L6-30R, 1) 50A Non-NEMA In/Out
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Standard Product
Standard:
UL 1640 cUL and CSA, UL 943
Sub Brand:
Spider Temporary Wiring Products
Tech Drawing Link:
Type:
6-20A, 125V Straight Blade Receptacles, 1-30A, 250V Locking Receptacle, 1-50A 125/250V Inlet, 1-50A 125/250V Locking Outlet
UNSPSC:
39121406
Voltage Rating:
120/240
Warranty Link:
Wattage:
12,500
Weight:
49.700 L
Wire Size:
#10 AWG Min #6 AWG Max
Manufactured By:
Hubbell Wiring Device-Kellems
