SP TOG, IND, ST, 15A 120/277V, LA by Hubbell Wiring Device-Kellems
- Part Number: HBL1201STLA
- UPC: 00783585963501
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

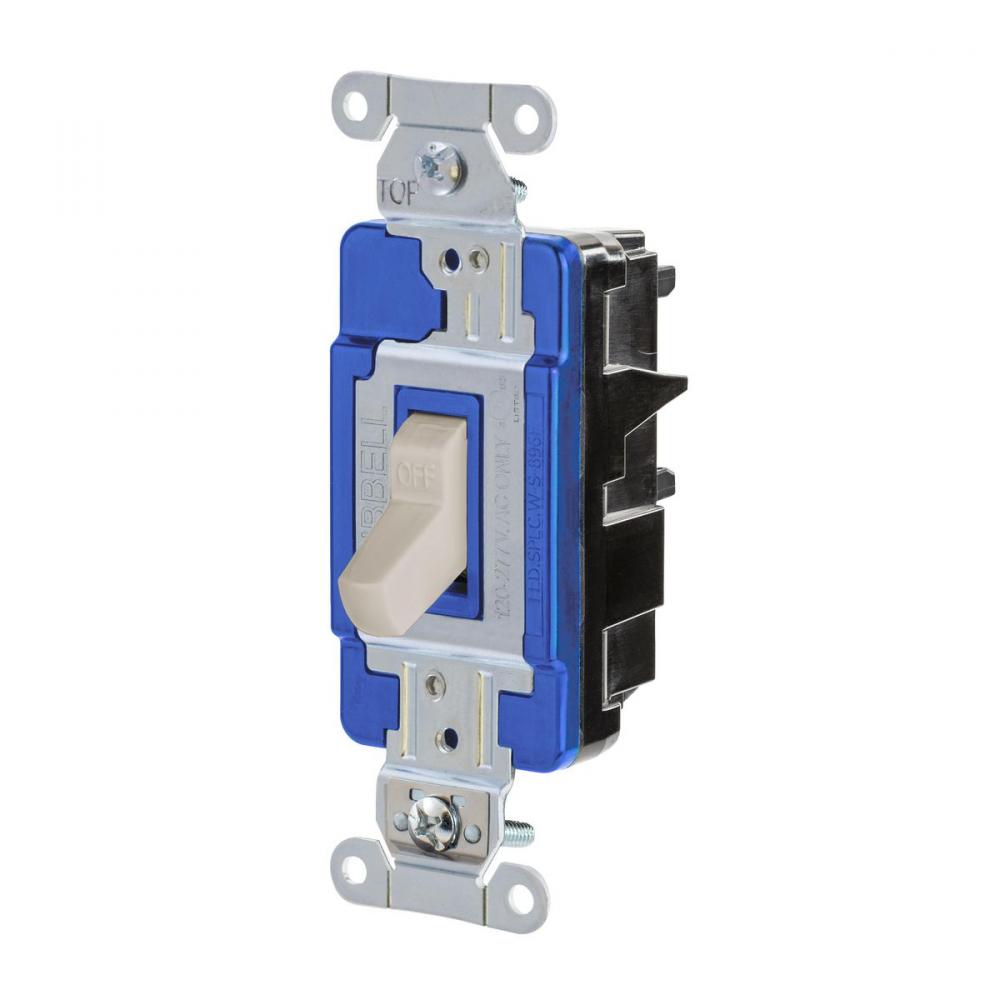

EdgeConnect™, Single Pole Switch, Industrial Grade, Screwless Termination, Toggle, 15A 120/277V, Light Almond
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
Toggle
Actuator:
Toggle
Amperage Rating:
15
Application:
Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Closed Contact Resistance:
Per UL 20
Color:
Light Almond
Connection:
Spring Termination
Contact Configuration:
Two Position
Contact Rating:
15A
Country Of Origin:
CN
Enclosure:
None
Environmental Conditions:
UL 94V-2
Installation Link:
Insulation:
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Line Drawing Link:
Material:
Polycarbonate
Mounting:
Strap
Number Of Poles:
Single Pole
Operating Cycles:
Minimum 4.8 times rated current for 100 cycles
Operating Temperature:
Max. continuous: 75°C; Min. continuous: -40°C without impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Special Features:
Screwless Termination
Standard:
UL20/CSA C22.2 No.111-18;Fed Spec is W-S-896;NEMA® BI-WD and WD-6
Type:
Switch
UNSPSC:
39122211
Voltage Rating:
120/277
Warranty Link:
Weight:
.150 L
Manufactured By:
Hubbell Wiring Device-Kellems
