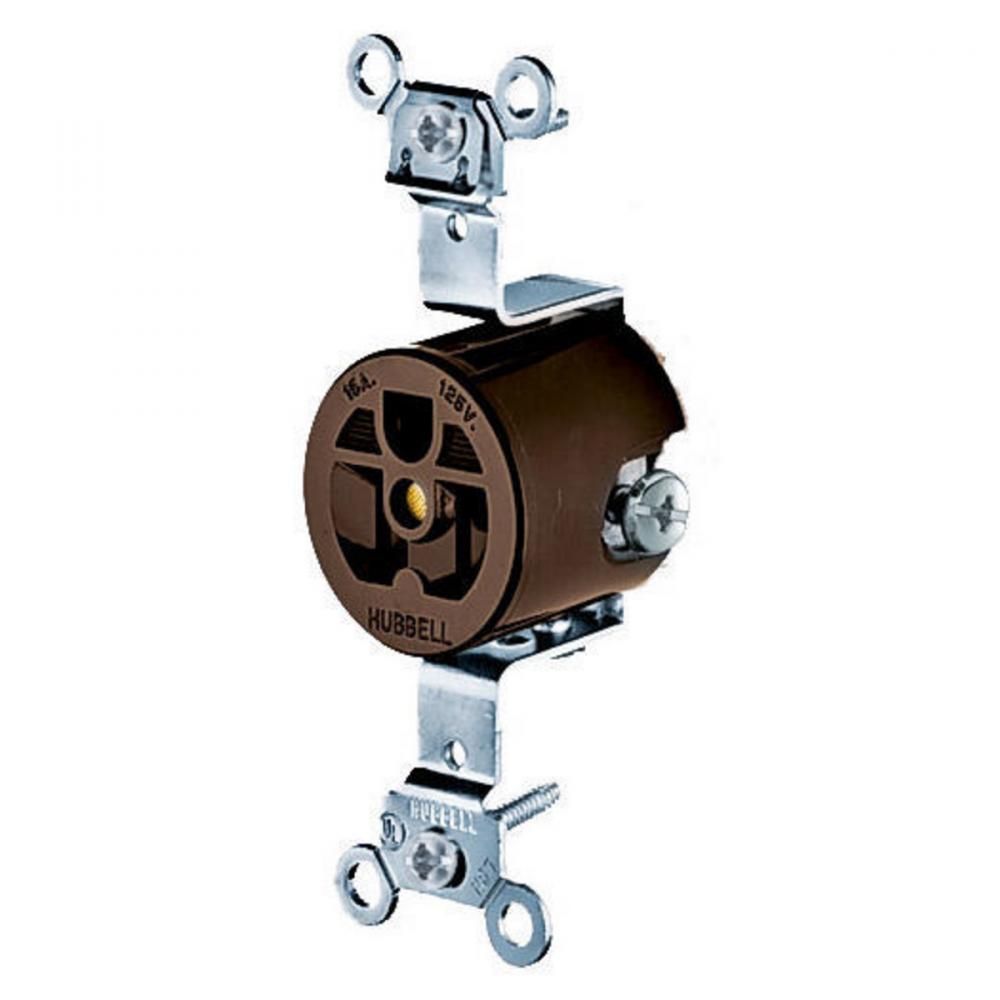

SGL RCPT, COMM/IND GRD,15A 125V,5-15R,BR by Hubbell Wiring Device-Kellems
- Part Number: HBL5251
- UPC: 00783585013817
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Receptacles, Single, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Brown
Connection:
Side Wired Only
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.28 in x 1.39 in x 1.13 in
Spec Sheet:
Special Features:
Self Grounding
Standard:
Certified to CSA 22.2, No. 42;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed, File E2186
Sub Brand:
Straight Blade Devices
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.067 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
