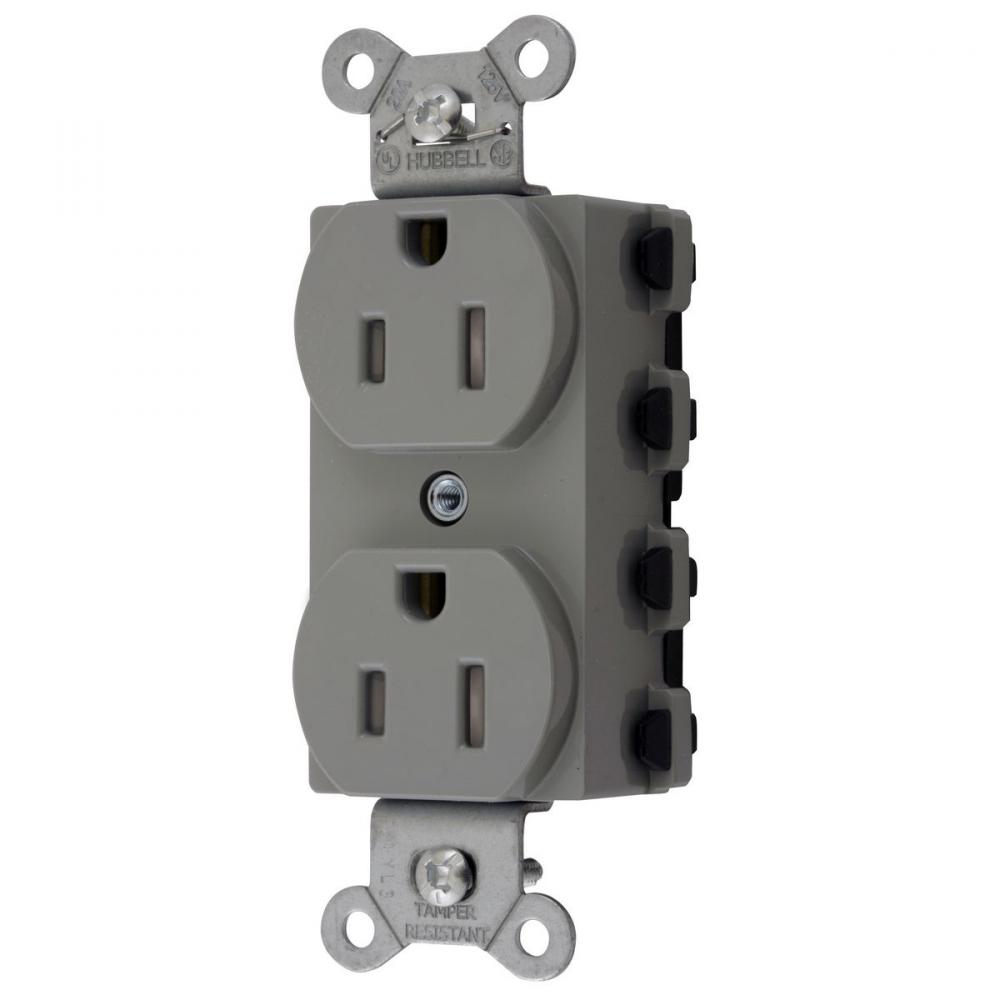

S-CONNECT DUP 15A/125V TR GY,ST2 by Hubbell Wiring Device-Kellems
- Part Number: SNAP5262GYTRA
- UPC: 00783585552651
- Availability:
Product Overview
Straight Blade Devices, Receptacles, Duplex, SNAPConnect, Tamper Resistant, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Nylon, Gray, USA
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Extra Heavy Duty Specification Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Country Of Origin:
CN
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Material:
Nylon
NEMA Rating:
5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
3.28 in x 1.64 in x 1.1 in
Spec Sheet:
Special Features:
Quick Connect- SNAPConnect, Tamper-Resistant, USA Product
Standard:
Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Tech Drawing Link:
Type:
Tamper-Resistant
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.200 L
Wire Size:
#12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
