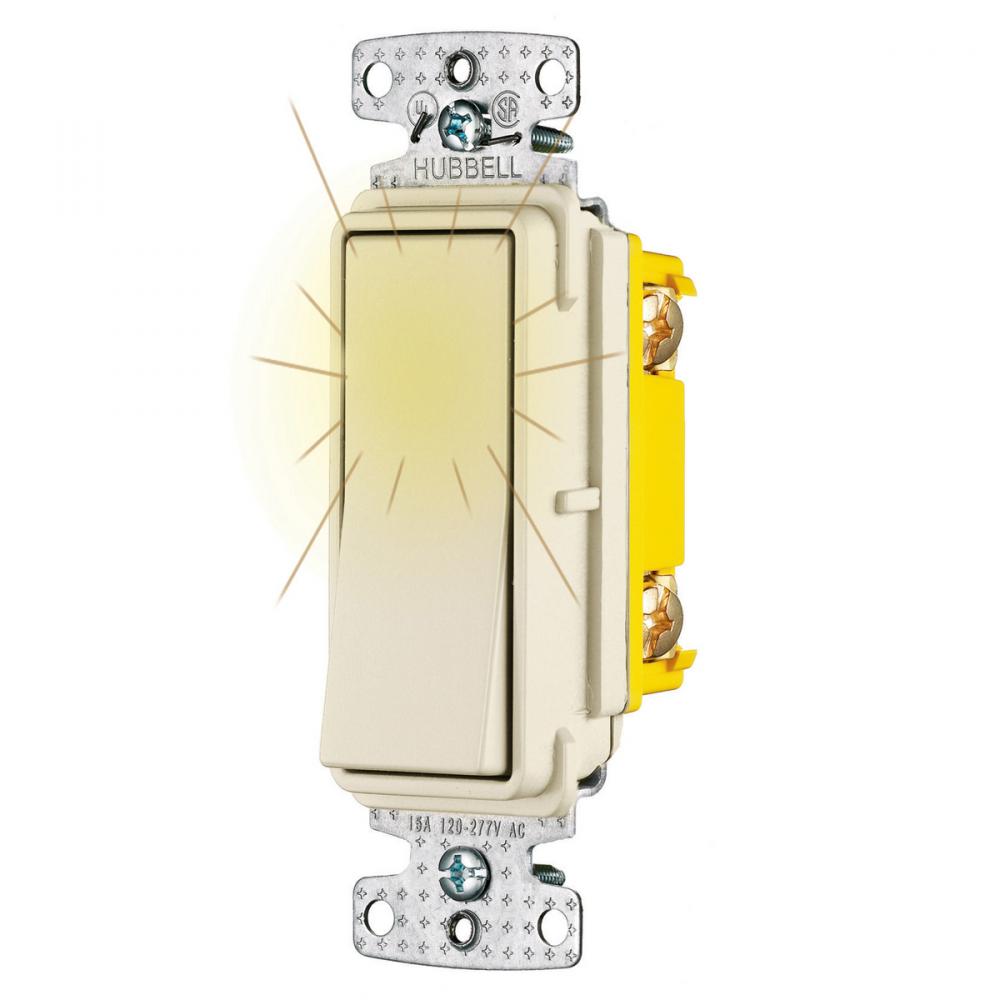

RESI ROCKER SW, SP, 15A 120V, PL LA by Hubbell Wiring Device-Kellems
- Part Number: RSD115PLLA
- UPC: 00883778119415
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
TradeSelect, Switches and Lighting Controls, Rocker, Pilot, Single Pole, 15A 120V AC, Light Almond
Specifications
Details
Category:
Lighting Controls
Action:
Positive Snap
Actuator:
Rocker
Amperage Rating:
15A
Application:
Residential Wiring Devices
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Light Almond
Connection:
Push Wire and Terminal Screws
Contact Configuration:
2 Position
Contact Rating:
Per UL 20
Country Of Origin:
CN
Enclosure:
None
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Indicator:
None
Installation Link:
Line Drawing Link:
Material:
Composite
Mounting:
Screw Mount
Number Of Poles:
Single Pole- Pilot
Operating Cycles:
30,000 Cycles
Operating Temperature:
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard Sized
Spec Sheet:
Special Features:
Standard Product
Standard:
CSA Certified;Listed to UL Standard 20
Sub Brand:
AC Decorator Switches
Tech Drawing Link:
Type:
General Purpose Switches
UNSPSC:
39122226
Voltage Rating:
120
Warranty Link:
Wattage:
1800
Weight:
.160 L
Manufactured By:
Hubbell Wiring Device-Kellems
