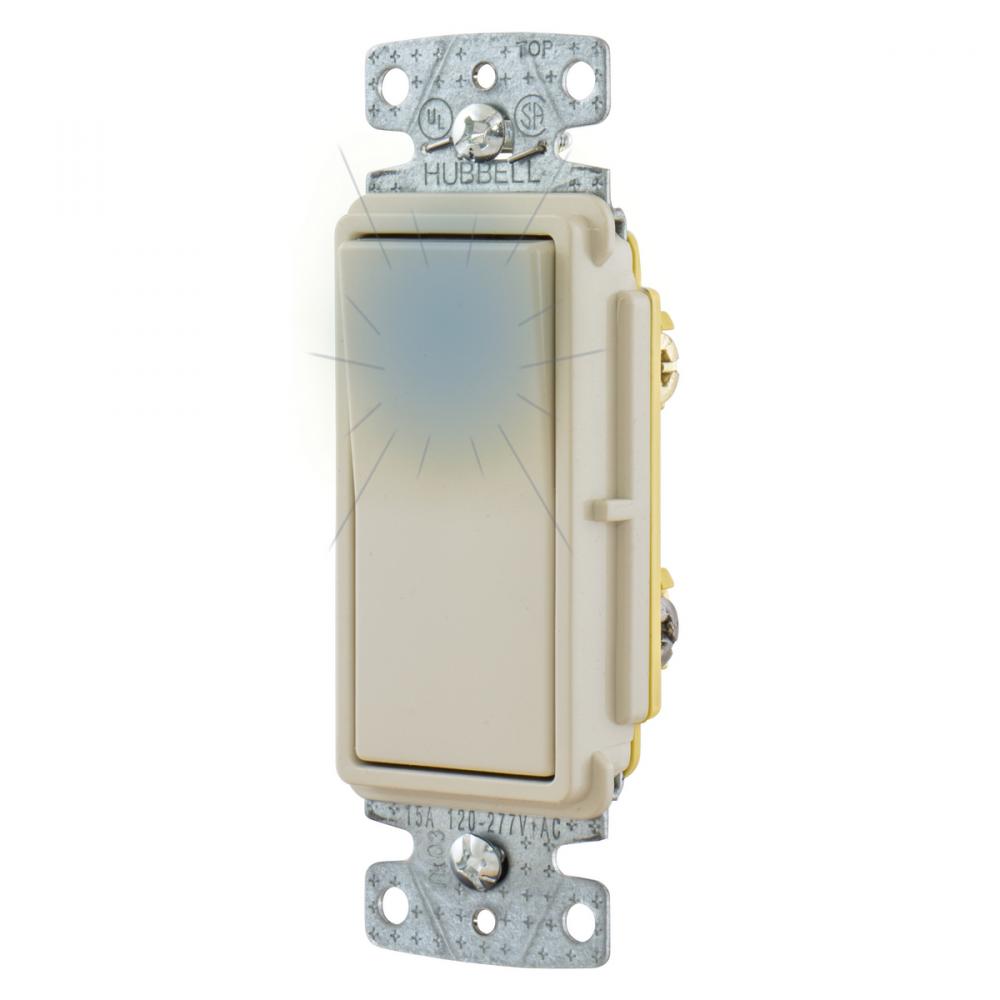

RESI ROCKER SW, 3W, 15A 120V, ILL LA by Hubbell Wiring Device-Kellems
- Part Number: RSD315ILLA
- UPC: 00883778119439
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
tradeSELECT® Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Illuminated Three Way, 15A 120/277V AC, Push Back and Side
Specifications
Details
Category:
Lighting Controls
Action:
Positive Snap
Actuator:
Rocker
Amperage Rating:
15A
Application:
Residential Wiring Devices
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Light Almond
Connection:
Terminal Screw
Contact Configuration:
2 Position
Contact Rating:
Per UL 20
Country Of Origin:
CN
Enclosure:
None
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Indicator:
None
Installation Link:
Line Drawing Link:
Material:
Composite
Mounting:
Screw Mount
Number Of Poles:
Three Way Illuminated
Operating Cycles:
50,000 Cycles
Operating Temperature:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard Sized
Spec Sheet:
Special Features:
Standard Product
Standard:
CSA Certified;UL Listed E3896
Sub Brand:
AC Decorator Switches
Tech Drawing Link:
Type:
General Purpose Switches
UNSPSC:
39122226
Voltage Rating:
120
Warranty Link:
Wattage:
1800
Weight:
.160 L
Manufactured By:
Hubbell Wiring Device-Kellems
