REP LOCKING CONN FOR SCB51 by Hubbell Wiring Device-Kellems
- Part Number: CS8156C
- UPC: 00783585828275
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

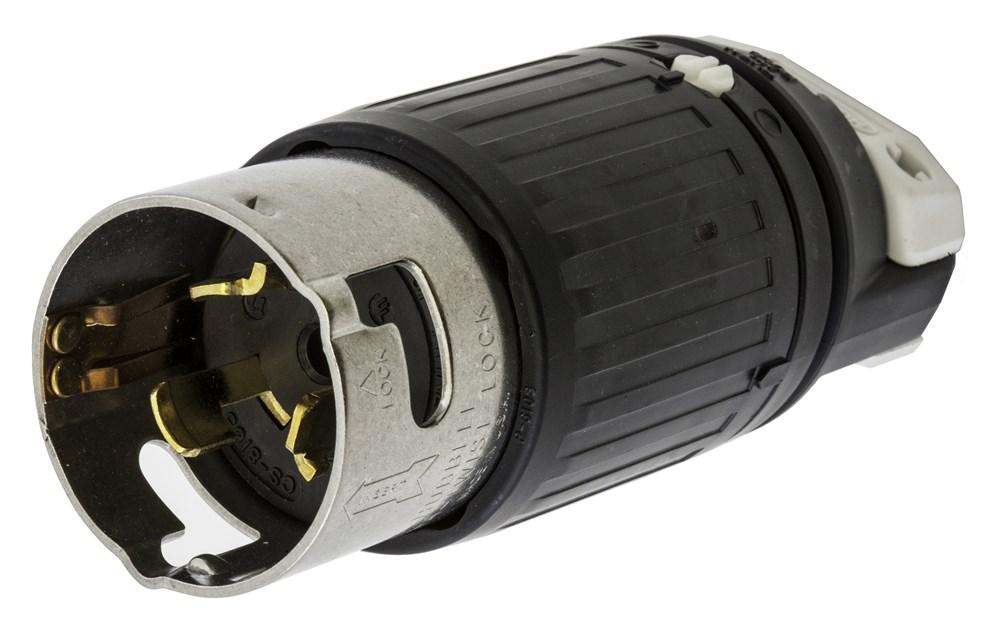

Hubbell Wiring Device Kellems, Temporary Power Products, Spider PortablePower, Replacement Parts, Female Connector Body, 50A 125/250V
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Electrical Subtype:
Electrical Connector Assembly
Amperage Rating:
50
Application:
Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
#6 AWG
Connection:
Screw Terminals
Country Of Origin:
US
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
Insulated Body
Length:
7.6000 in
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
4-Wire Grounding
Number Of Poles:
3-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
Standard
Special Features:
Standard Product
Standard:
UL 498, CSA
Sub Brand:
50A Twist-Lock
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Standard
UNSPSC:
39121421
Voltage Rating:
125/250
Weight:
1.100 L
Manufactured By:
Hubbell Wiring Device-Kellems
