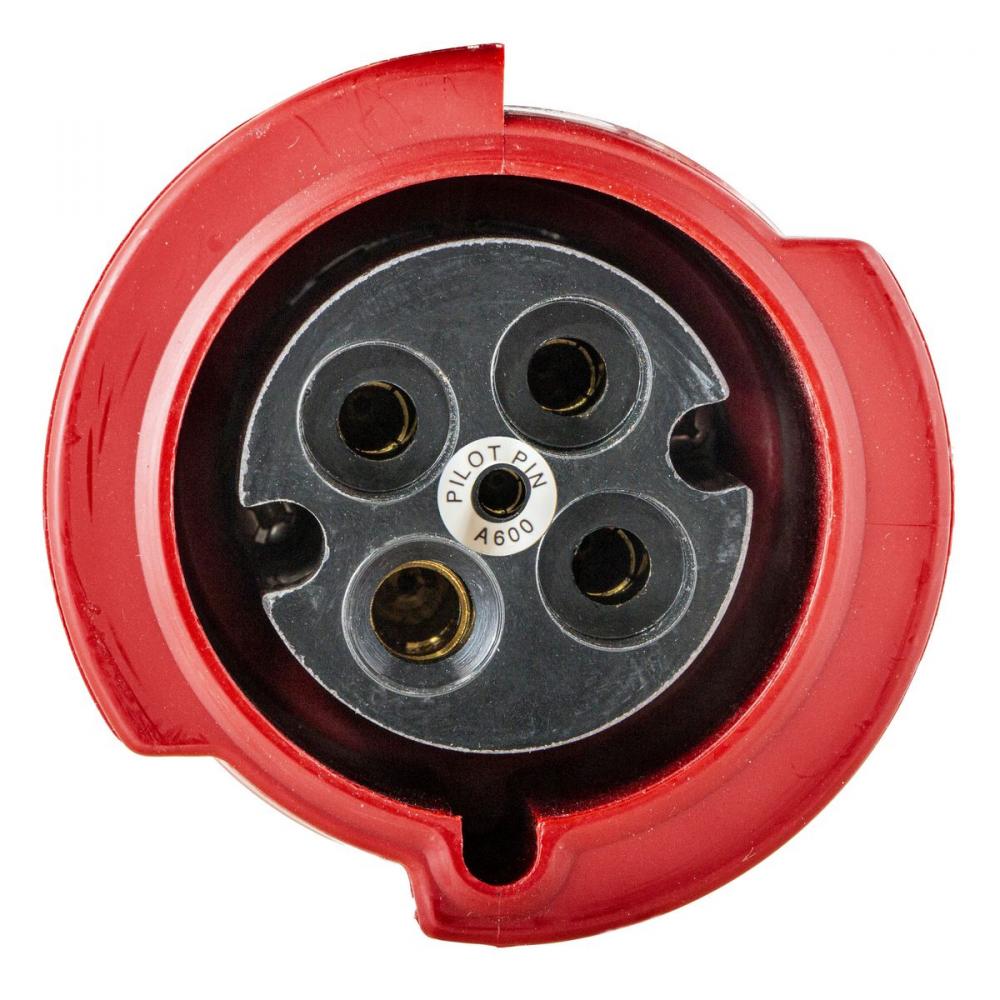

RECPT,3P4W,60/63A, 380-415V,4X/IP69K,PIN by Hubbell Wiring Device-Kellems
- Part Number: HBL460R6WP
- UPC: 00783585365619
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (9)
Product Overview
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle w/ Pilot Sleeve, 60/63 A, 380-415 VAC, 3-Pole 4-Wire Wire Grounding, Terminal Screws, Red, 4X and IP69k
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Application:
High Ampacity Watertight Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red
Country Of Origin:
US
Dielectric Strength:
Withstands 3000V Minimum in
Environmental Conditions:
Watertight
Insulation:
Insulated Body
Material:
Thermoplastic
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Multi Phase
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed to UL1682
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Type:
Watertight Receptacle w/ Pilot Sleeve
UNSPSC:
39121406
Voltage Rating:
380-415
Warranty Link:
Weight:
2.450 L
Wire Size:
#8 AWG to #2 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
