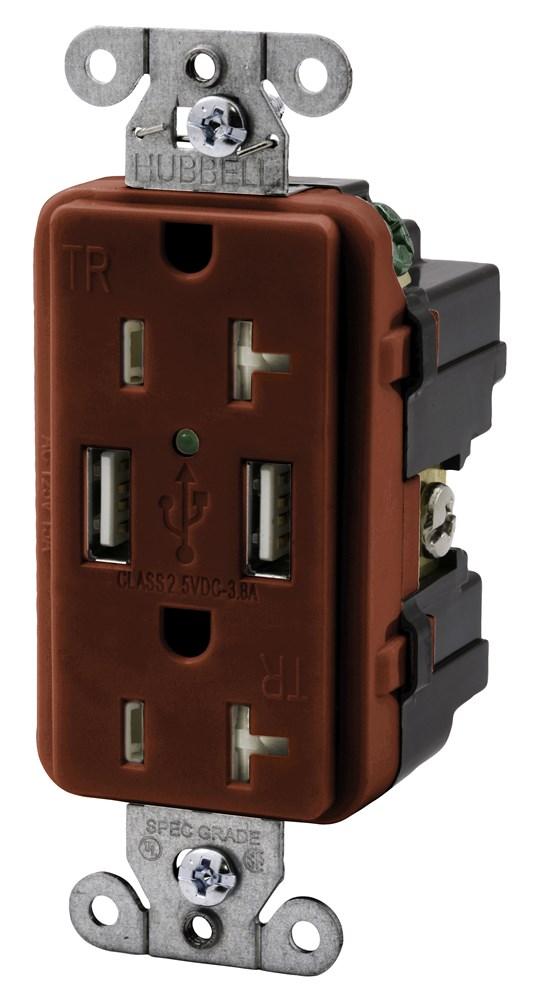

RECEP, DUP, 20A 125V,3.8A 5V USB PORT,RD by Hubbell Wiring Device-Kellems
- Part Number: USB20X2R
- UPC: 00883778304880
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Hubbell Wiring Device Kellems, Straight Blade Devices, Decorator DuplexReceptacle, 2) 3A 5V USB Ports, Industrial/Commercial Grade, 20A 125V,2-Pole 3-Wire Grounding, 5-20R, Red
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Electrical Subtype:
Electrical Receptacle
Electrical Receptacles
Amperage Rating:
20
Application:
Commercial Specification Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Length:
4.2000 in
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
RoHS Compliance:
No
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Dual USB Charger, Self Grounding
Standard:
NEMA WD1 and WD5, UL 498 for Receptacle, Complies with battery charging specification USB BC1.2, Compatible with USB 1.1/2.0/3.0 devices, Complies with Part 15 of the FCC rules
Sub Brand:
Straight Blade Devices
Type:
Decorator Duplex
UNSPSC:
39121406
Voltage Rating:
125
Wattage:
2500
Weight:
0.300 L
Wire Size:
#14 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
