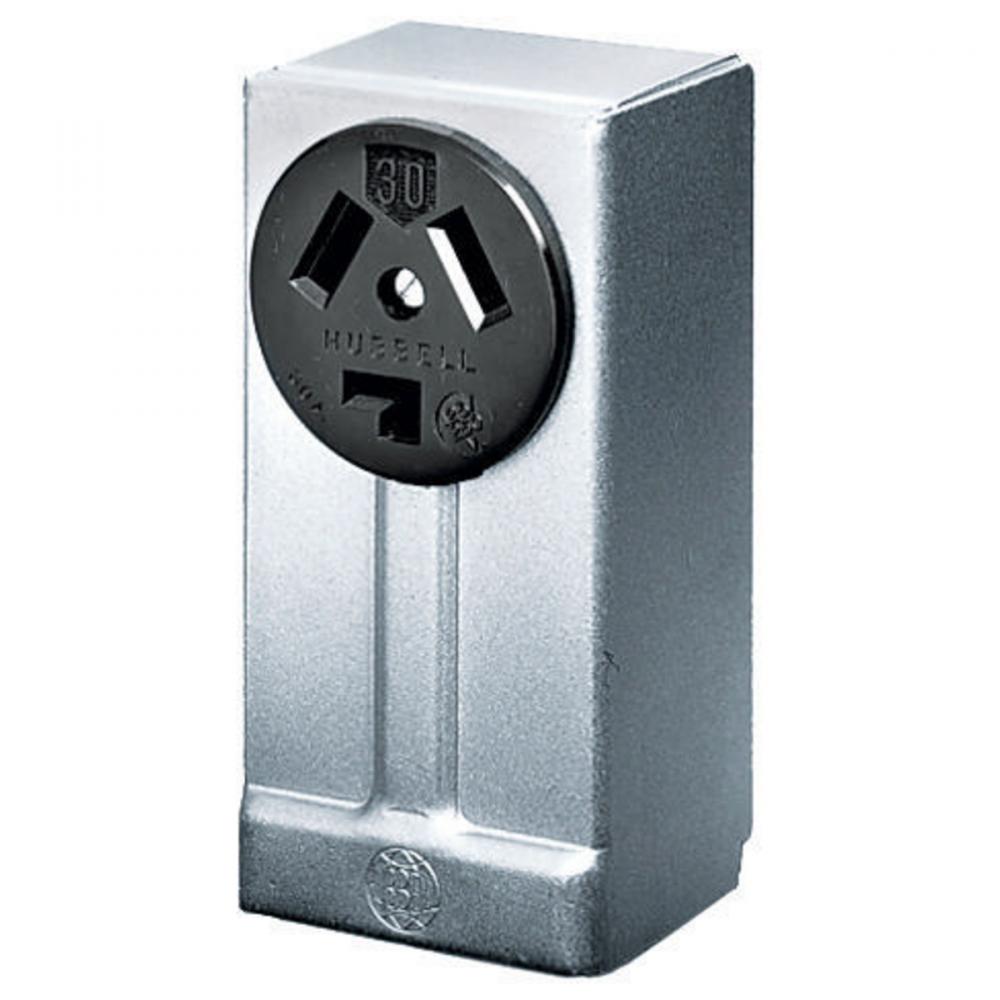

RCPT, SURF MT, 3P3W, 30A125/250V,10-30R by Hubbell Wiring Device-Kellems
- Part Number: HBL9395
- UPC: 00783585015552
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Receptacles, Surface Mounted, Aluminum Housing, Industrial Grade, 3-Pole 3-Wire Non-Grounding, 30A 125/250V, 10-30R, Black, Single Pack.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
US
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
10-30R
Number Of Poles:
3-Pole
Number Of Wires:
3-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
5.06 in x 2.5 in x 2.06 in
Spec Sheet:
Special Features:
Standard
Standard:
CSA Certified;NEMA® WD-6 Compliant;UL Listed File E2186
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
Receptacle
UNSPSC:
39121406
Voltage Rating:
125;250
Warranty Link:
Wattage:
7,500
Weight:
.850 L
Wire Size:
#12 AWG to #4 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
