RCPT, DUP, TR, 15A 125V, QCK-PLT, WH by Hubbell Wiring Device-Kellems
- Part Number: RR15QWTR
- UPC: 00883778301612
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

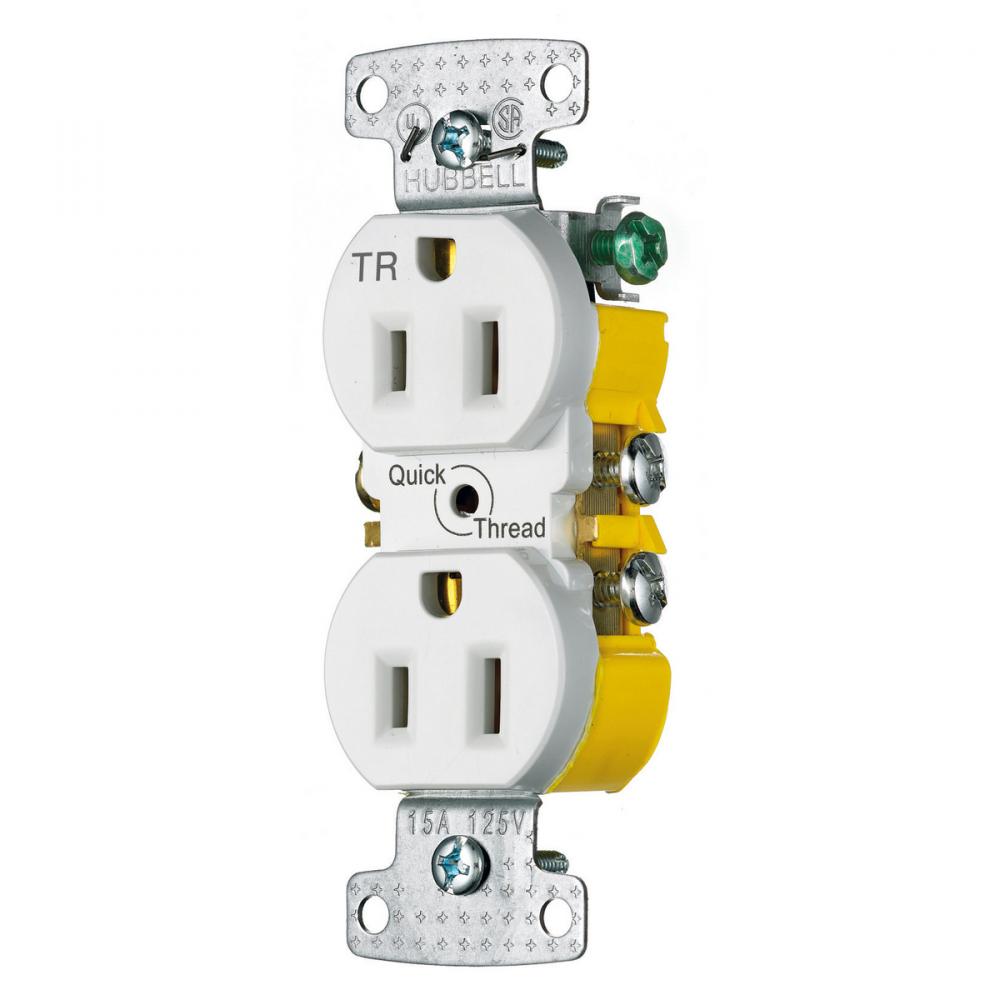

tradeSELECT® Straight Blade Receptacle, Residential Grade, Tamper Resistant Duplex, Quick Thread, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Residential Receptacles
Brand Name:
WIRING DEVICE-KELLEMS
Color:
White
Connection:
Push and Side Wire
Country Of Origin:
CN
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
5-15R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Order Minimum:
10.000 EA
Order Multiple:
10.000 EA
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Tamper Resistant- Self Grounding, Quick Thread
Standard:
CSA Certified;UL Listed E2186
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
Traditional Duplex
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
1,875
Weight:
.042 L
Wire Size:
#14 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
