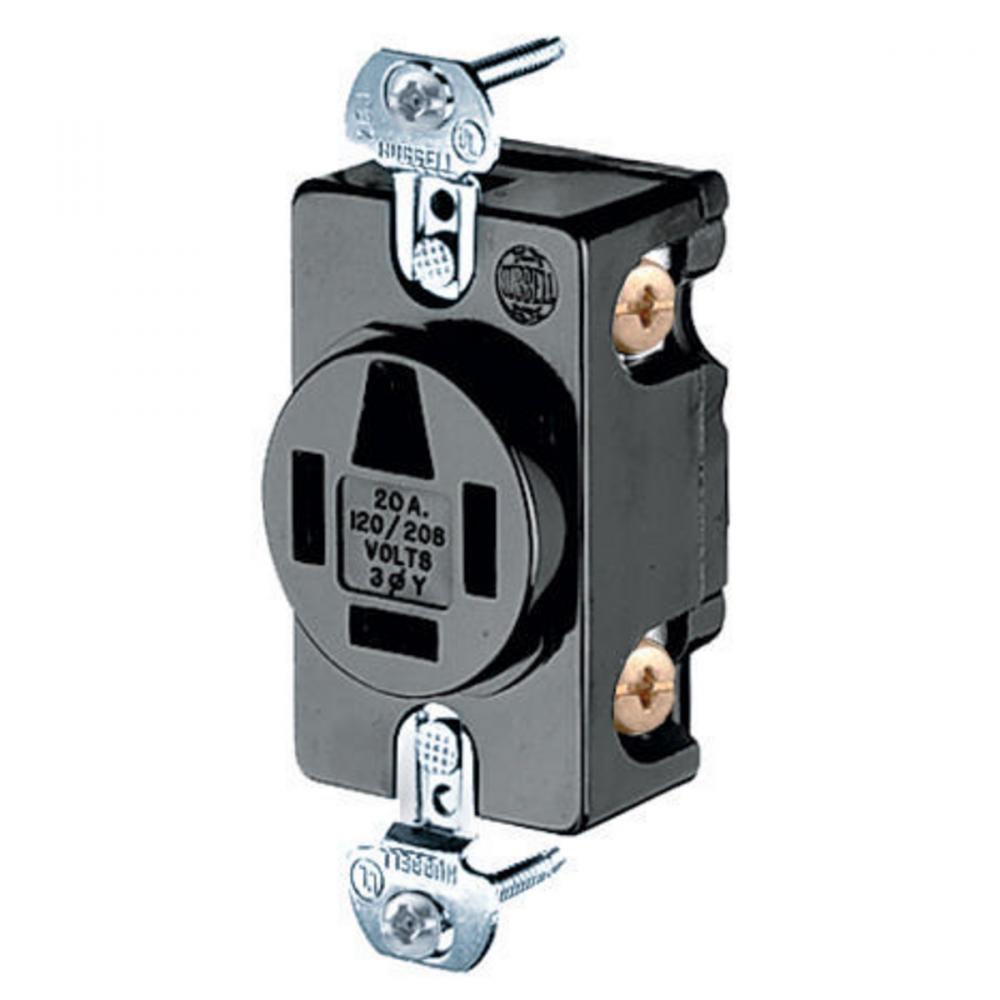

RCPT, 4P4W, 20A 120/208V, 18-20R, BK by Hubbell Wiring Device-Kellems
- Part Number: HBL7250
- UPC: 00783585014418
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade, 4-Pole 4-Wire Non-Grounding, 20A 3 Phase 120/208V AC, 18 -20R, Black, Single Pack.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Heavy Duty
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Back and Side Wired Screw Terminals
Country Of Origin:
PR
Dielectric Strength:
Withstands 2,000V minimum
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Thermoplastic/Composite
Mounting:
Screw Mount
NEMA Rating:
18-20R
Number Of Poles:
4-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Standard
Standard:
NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
Sub Brand:
Straight Blade Devices
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
120/208
Warranty Link:
Wattage:
4,160
Weight:
.200 L
Wire Size:
#14 AWG to #10 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
