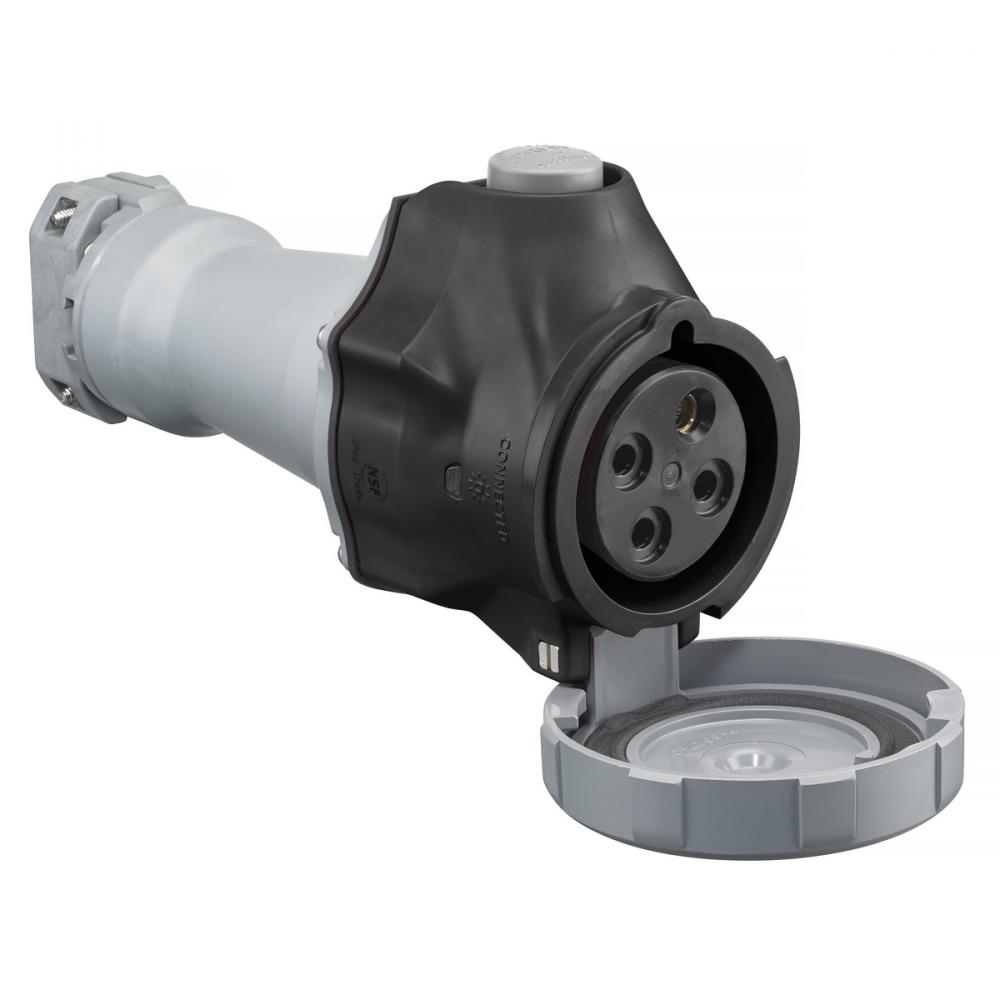

PS,IEC,SW CONN,3P4W,60A 3P 600V,4X/IP69k by Hubbell Wiring Device-Kellems
- Part Number: HBLS460C5W
- UPC: 00783585478579
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Heavy Duty Products, IEC Pin and Sleeve, Connector, Switched, 60A 3-Phase 600V AC, 3-Pole 4-Wire Grounding, NEMA4X/IP69K
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
60
Application:
Conduit Connection
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Conductor Range:
Per Conductor Fill Table
Country Of Origin:
PR
Environmental Conditions:
UL Standard to 1660. Sunlight resistant approved for outdoor use.
Finish:
Molded
Installation Link:
Line Drawing Link:
Material:
Non-Metallic
Mounting:
Threaded Hub
NEMA Rating:
UL Listed to Type 4, 4X, 12 and 13
Number Of Conductors:
Per Conduit Fill Table
Number Of Poles:
3-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
1/2" NPT
Spec Sheet:
Special Features:
For Non-Metallic
Standard:
UL/CSA
Sub Brand:
LiquidTight Conduit Fittings
Tech Drawing Link:
Temperature Rating:
0 Deg F to 176 Deg Max
Type:
Watertight Connector
UNSPSC:
39121421
Voltage Rating:
3 Phase 600
Warranty Link:
Weight:
3.400 L
Manufactured By:
Hubbell Wiring Device-Kellems
