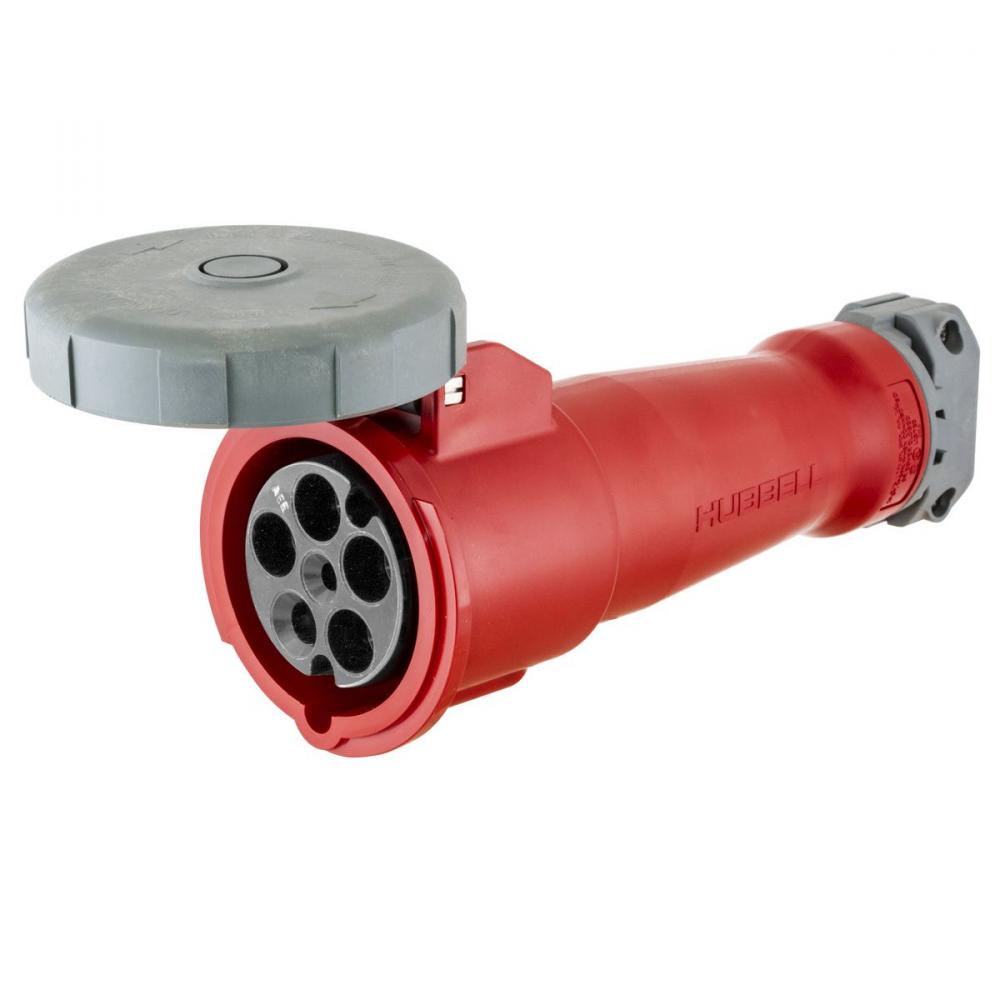

PS,IEC,CONN,4P5W,16/20A 200-415V, 4X/69K by Hubbell Wiring Device-Kellems
- Part Number: HBL520C6W
- UPC: 00783585372709
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (10)
Product Overview
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector, 16/20 A, 200/346-240/415 V;220/380-240/415 V, 4-Pole 5-Wire Wire Grounding, Terminal Screws, Red, 4X and IP69k
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
16/20
Application:
High Ampacity Watertight Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red
Conductor Range:
#14AWG to #10AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
5-Wire Grounding
Number Of Poles:
4-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed to UL1682
Sub Brand:
Pin and Sleeve Devices
Tech Drawing Link:
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Watertight Connector Body
UNSPSC:
39121421
Voltage Rating:
200/346-240/415 V;220/380-240/415 V
Warranty Link:
Weight:
1.550 L
Manufactured By:
Hubbell Wiring Device-Kellems
