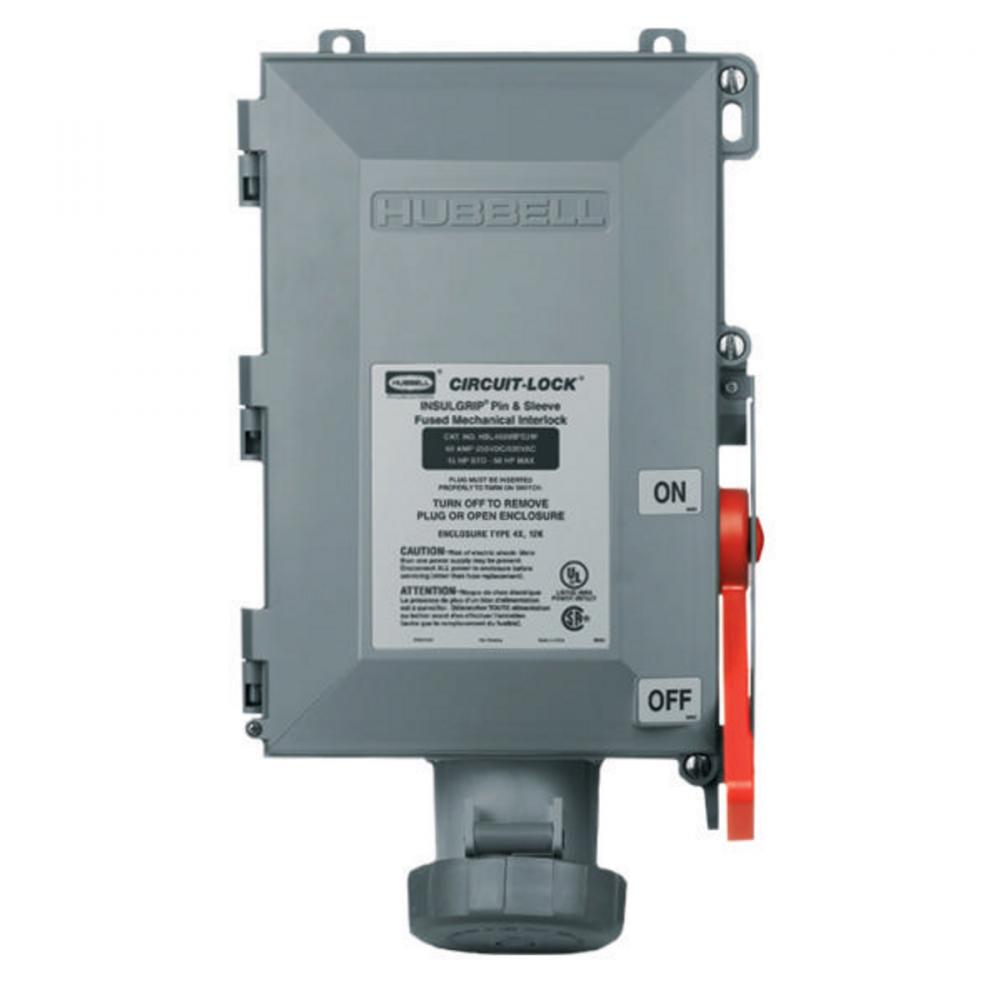

PS, INS, MECHINT, 3P4W, 30A 600V, W/T by Hubbell Wiring Device-Kellems
- Part Number: HBL430MIS2W
- UPC: 00783585514871
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
High Ampacity Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Gray
Connection:
Pressure Screw Terminals
Country Of Origin:
PL
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
3-Pole
Number Of Wires:
4-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single/Three
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
UL Listed for US and Canada
Sub Brand:
IEC 309 Pin and Sleeve Devices
Tech Drawing Link:
Type:
Mechanical Interlock
UNSPSC:
39121406
Voltage Rating:
600 VAC/250
Warranty Link:
Wattage:
18,000
Weight:
16.650 L
Wire Size:
#12 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
