PS, INS, CONN, 2P3W, 60A 600V, S1 by Hubbell Wiring Device-Kellems
- Part Number: HBL360CS1W
- UPC: 00783585010441
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

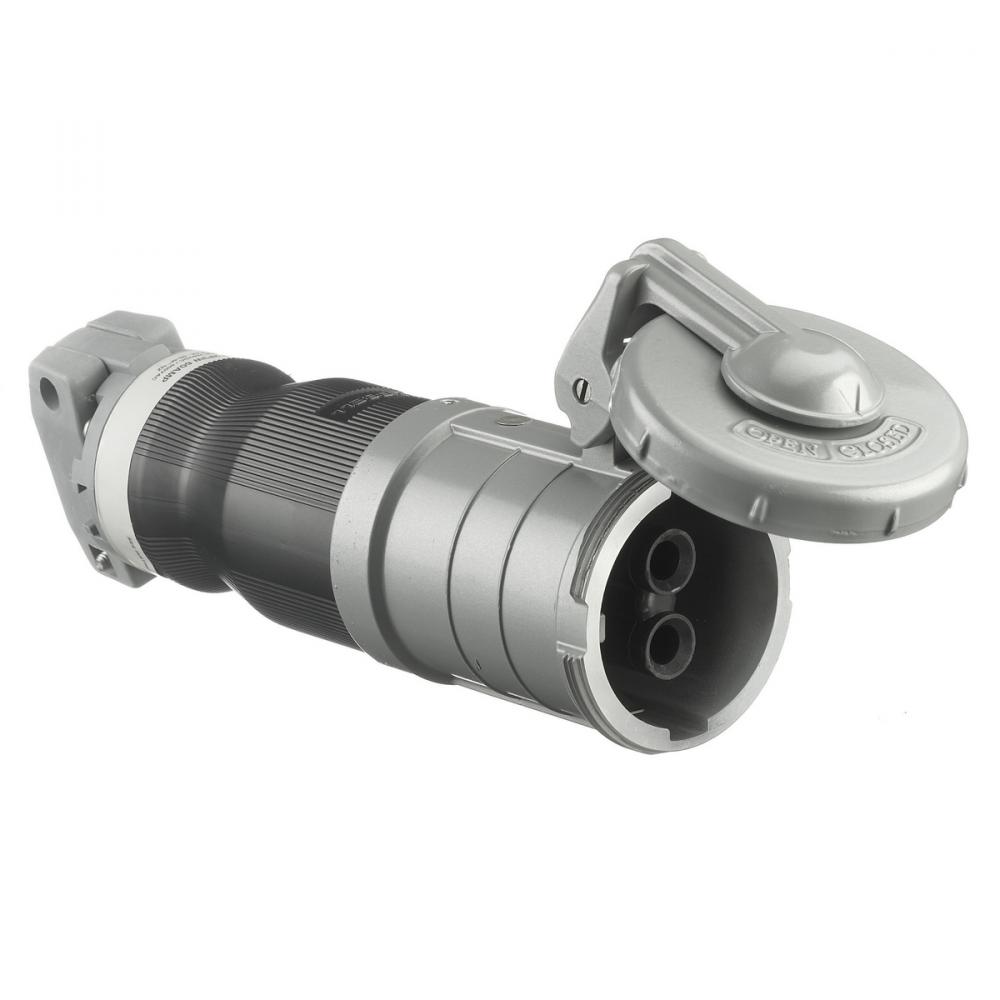

Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 60A 600V AC, 2-Pole 3-Wire Grounding Style 1,Terminal Screws
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Amperage Rating:
60
Application:
Metallic with Nylon Shroud
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black and Gray
Conductor Range:
#6 AWG to #4 AWG
Connection:
Pressure Screw Terminal
Country Of Origin:
PR
Environmental Conditions:
Watertight
Installation Link:
Insulation:
Insulated Body
Line Drawing Link:
Material:
Composite
Mounting:
Cord Mounted
NEMA Rating:
Non-NEMA
Number Of Conductors:
3-Wire Grounding
Number Of Poles:
2-Pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
Standard
Spec Sheet:
Special Features:
Watertight
Standard:
CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
Sub Brand:
Pin and Sleeve
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type:
Watertight Connector
UNSPSC:
39121421
Voltage Rating:
600 VAC/250
Warranty Link:
Weight:
2.700 L
Manufactured By:
Hubbell Wiring Device-Kellems
