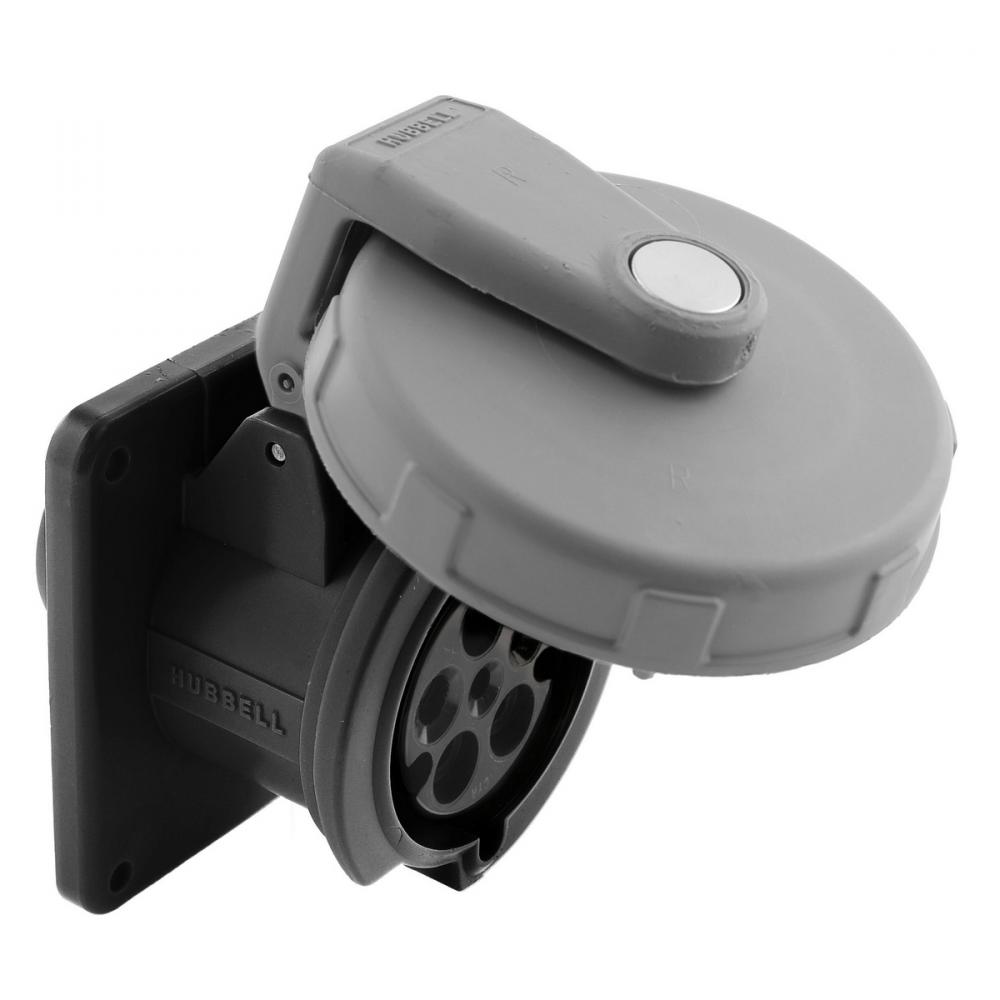

PS, IEC, RECP, 4P5W, 30A 347/600V,4X/69K by Hubbell Wiring Device-Kellems
- Part Number: HBL530R5W
- UPC: 00783585405506
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Black, Watertight
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
High Ampacity Watertight Connections
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Black
Connection:
Pressure Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Watertight
Installation Link:
Line Drawing Link:
Material:
Thermoplastic
Mounting:
Screw Mount
NEMA Rating:
Non-NEMA
Number Of Poles:
4-Pole
Number Of Wires:
5-Wire
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Watertight
Standard:
CSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Sub Brand:
IEC 309 Pin and Sleeve Devices
Tech Drawing Link:
Type:
Watertight Receptacle
UNSPSC:
39121406
Voltage Rating:
3 Phase Y 347/600
Warranty Link:
Wattage:
18,000
Weight:
1.500 L
Wire Size:
#12 AWG to #8 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
